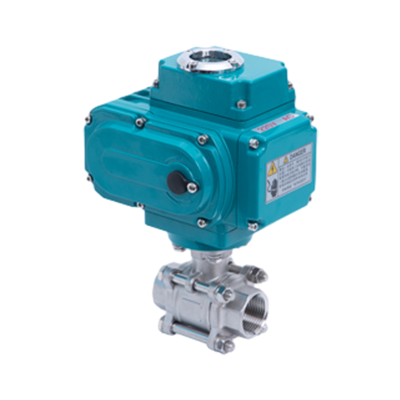

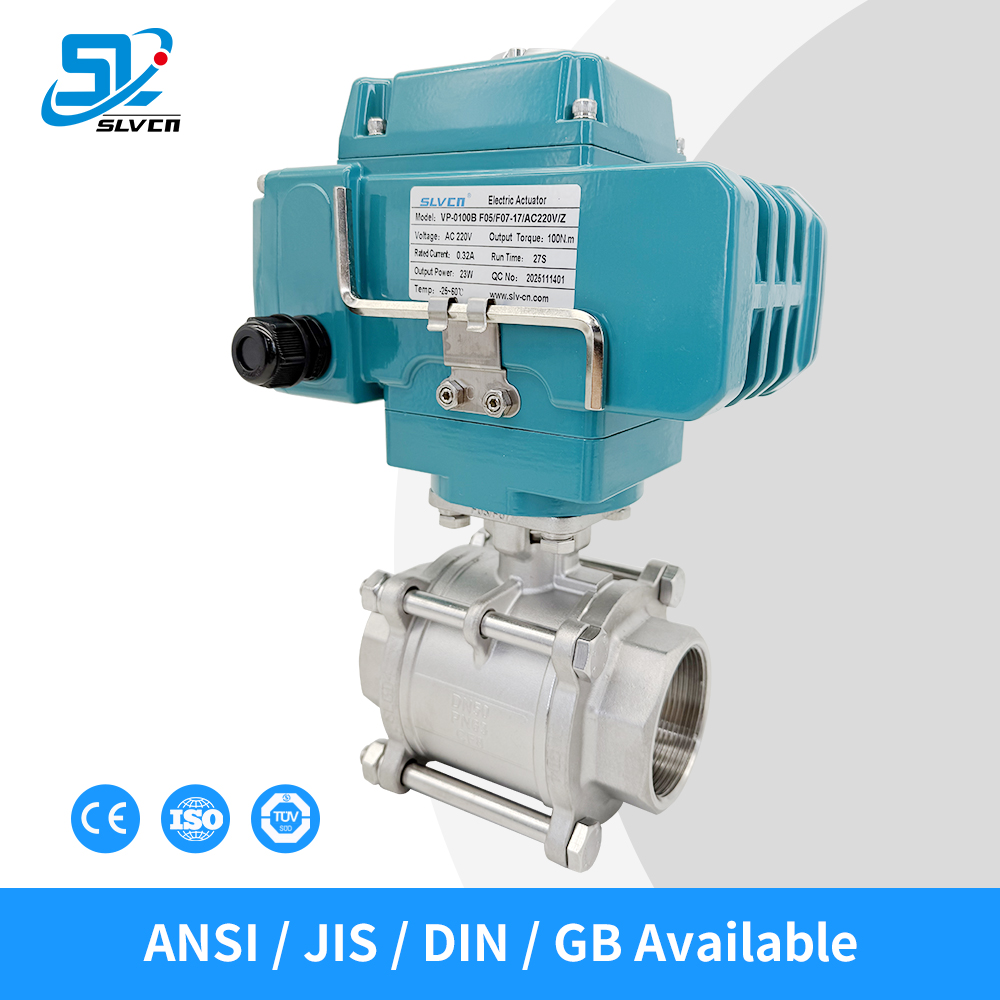

SLVCN Electric 3 Piece Threaded Ball Valve is designed for reliable on/off and automated flow control in industrial pipeline systems.
The compact three-piece structure allows easy maintenance, reduced downtime, and flexible actuator installation for long-term stable operation.

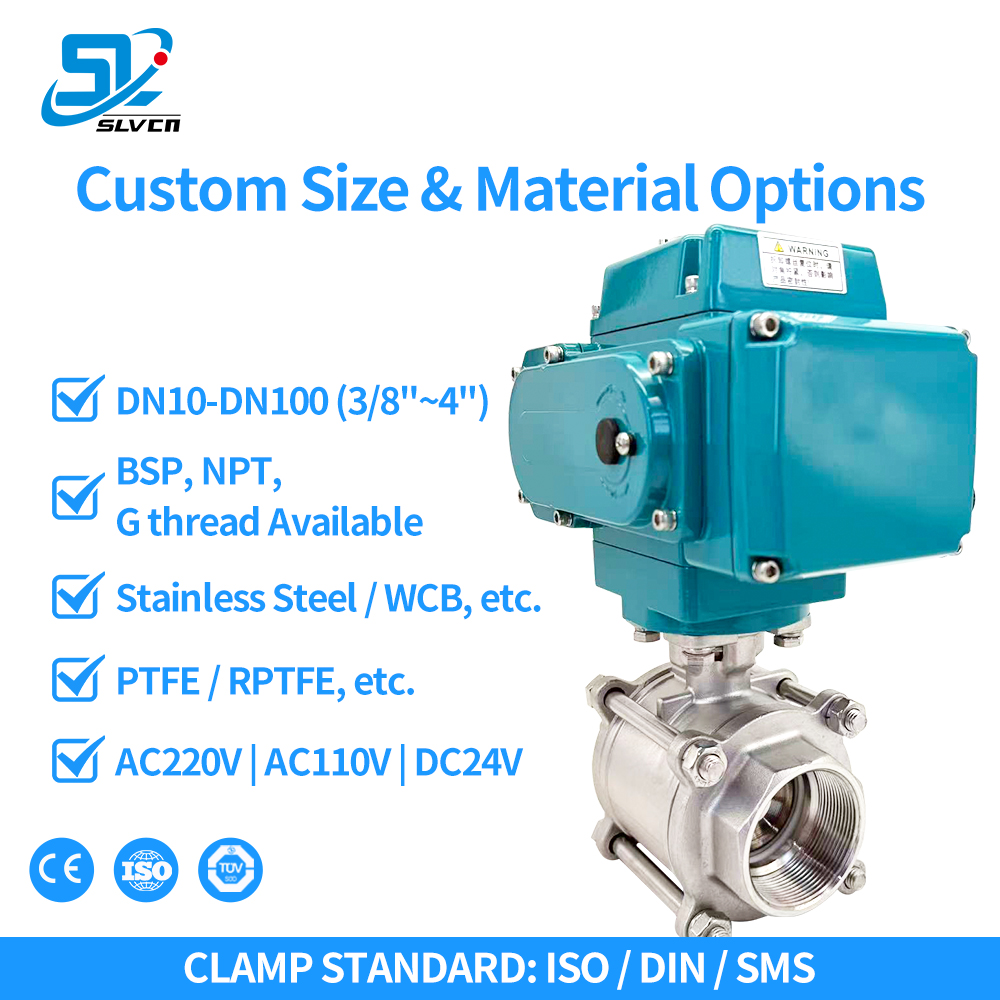

Available in SS304, SS304L, SS316, SS316L and Duplex Stainless Steel with BSP, BSPT, and NPT threaded connections for global industrial applications.
● Reliable Leak-Free Sealing Performance
PTFE, RPTFE, PPL and PEEK seat options ensure tight shut-off, low torque operation, and long service life in industrial pipelines.

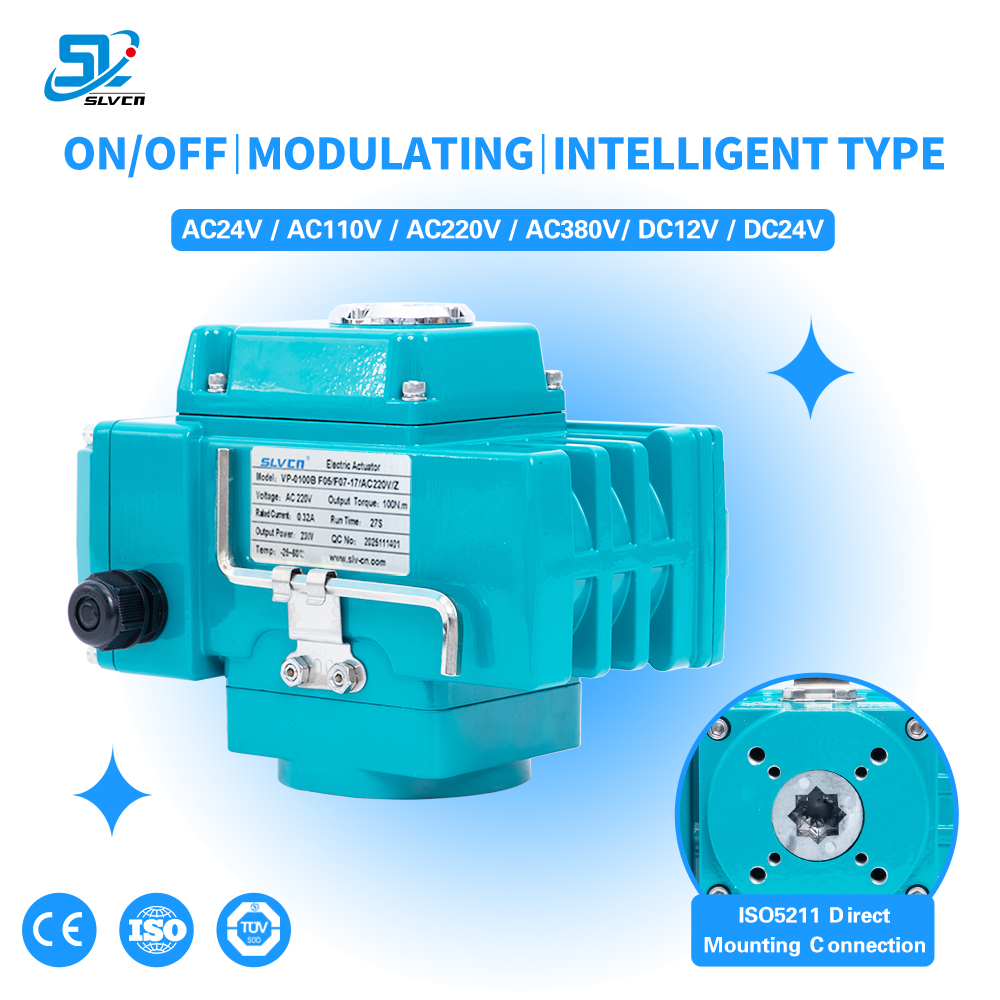

● Flexible Electric Actuator Options
Available with ON/OFF, modulating, and intelligent control types. Optional explosion-proof design, RS485/Modbus communication, and IP65–IP68 protection for advanced automation applications.

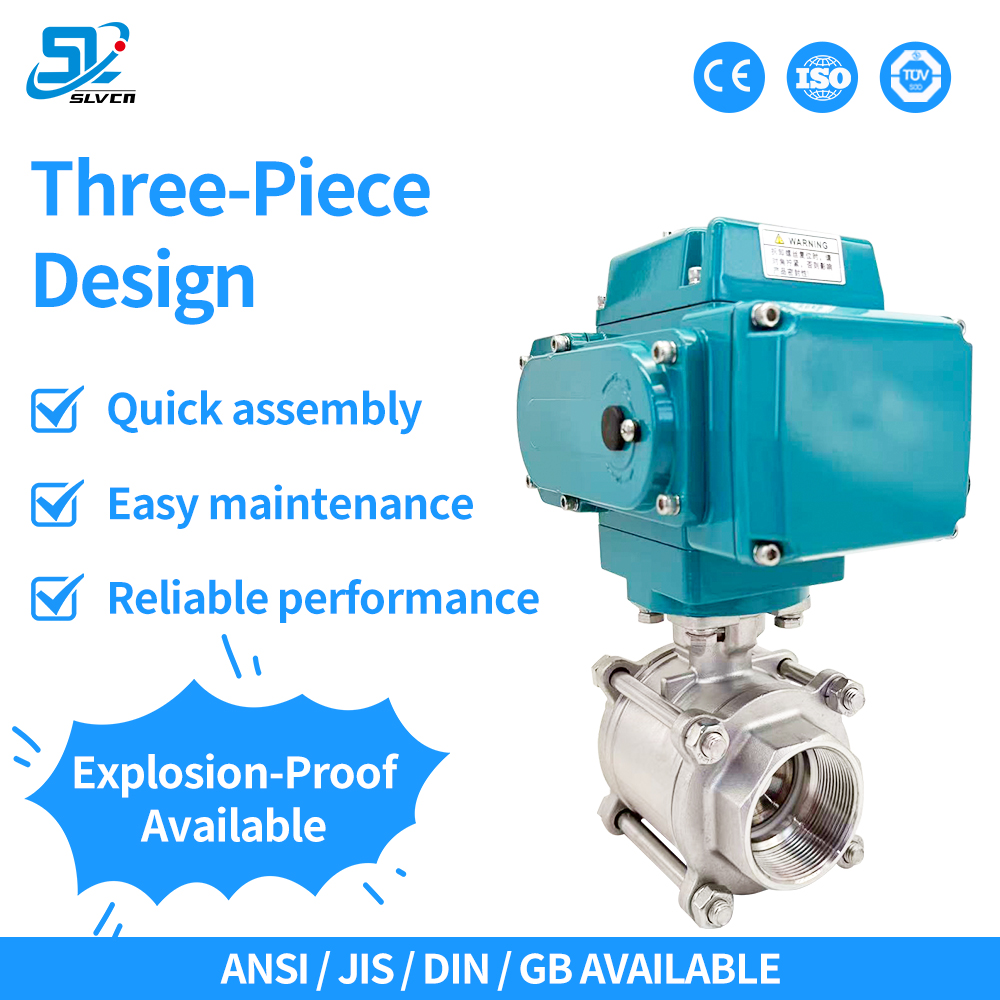

● Compact 3-Piece Structure for Easy Maintenance
Three-piece threaded design allows quick disassembly, easy maintenance, and reduced downtime during service.
● Flexible Actuator Integration (ISO 5211 Standard)
ISO 5211 mounting platform supports electric or pneumatic actuators for flexible system integration.
● Factory Tested Quality Assurance
Each valve is pressure and leakage tested before delivery. Inspection photos or videos can be provided upon request for quality verification.
Proper selection of seat material and threaded connection type is essential to ensure sealing performance, installation compatibility, and reliable operation in industrial automated pipeline systems.
Seat Material Selection Guide:
| Seat Material | Key Features | Temperature Range | Recommended Applications |
| PTFE | Excellent chemical resistance and sealing performance | -20°C to 180°C | Water, oil, gas, general chemical media |
| RPTFE | Enhanced wear resistance and dimensional stability for frequent operation | -20°C to 200°C | Industrial automation and high cycle operation systems |
| PPL | High temperature resistance for continuous operation | ≤250°C | Steam, thermal oil, heat transfer fluid systems |
| PEEK | Superior strength and abrasion resistance under harsh conditions | ≤300°C | High pressure, abrasive and severe service conditions |
Thread Type Selection Guide:
| Thread Type | Standard | Region | Key Features |
| BSP (G Thread) | ISO 228 | Europe / Asia | Parallel thread, sealing depends on gasket or PTFE tape |
| BSPT | ISO 7-1 | Europe / Asia | Tapered thread with thread sealing capability |
| NPT | ANSI/ASME B1.20.1 | North America | Tapered thread, self-sealing under tightening |
Note:
G thread (BSPP) is a parallel thread standard. It can be used in both male (external) and female (internal) configurations depending on pipeline connection requirements.
Designed for automated flow control in industrial pipeline systems requiring reliable shut-off performance and corrosion resistance.
• Water Treatment Systems (Filtration, Distribution)
• Oil & Gas Pipeline Systems (General Service Applications)
• Chemical Processing Systems (Non-corrosive / standard media)
• HVAC Systems (Cooling and Heating Circuits)
• Industrial Automation Systems (Flow Control Lines)
• Food & Beverage Systems (Non-hygienic fluid control)
• General Utility Fluid Systems
