Pneumatic high pressure ball valve


Pneumatic high pressure ball valve

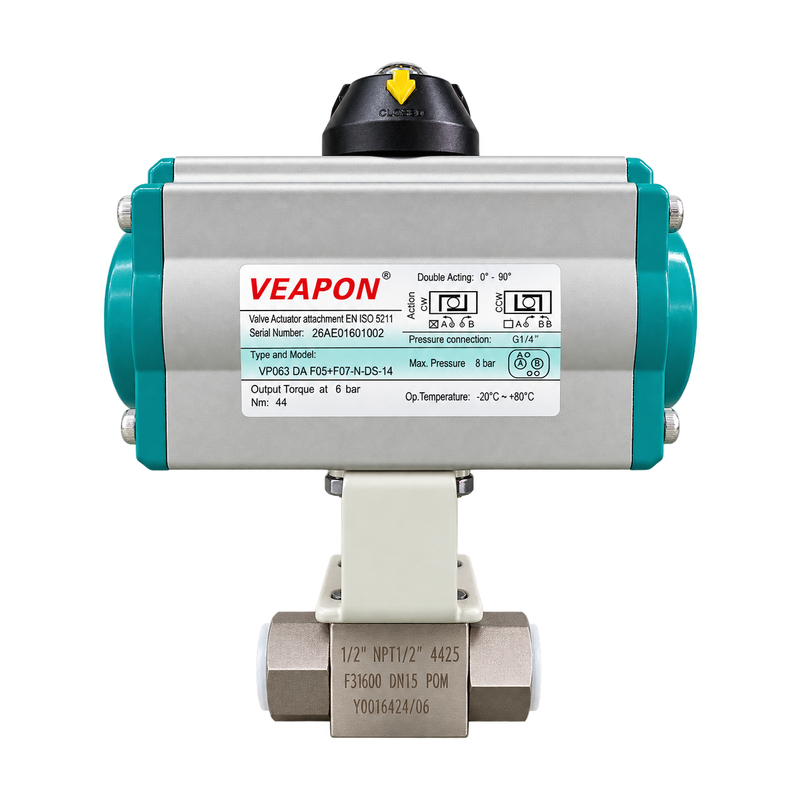

High pressure ball valve with pneumatic actuator

Pneumatic Actuator

Brand

Veapon

Style

Double Acting, Single Acting

Run time

0.1S

Shell Body

aluminium alloy

Certification

CE

Plastic Valve

Valve Body Material

Stainless Steel, SUS304/316/316L, CF8/CF8M/CF3M

O-ring/Seat Material

EPDM, FPM, PTFE

End type

Threaded, welded

Standard

ANSI, JIS, DIN, CNS

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Pressure

PN315, PN500

Acessories

Solenoid valve, Air reduce regulator, Limit switch box, Positioner


Certification

ISO9001:2015



  • details
  • Specification


Veapon Double acting/Single acting Pneumatic Actuator Stainless steel PT/NPT Female Threaded High Pressure Ball Valve


High Pressure Stainless steel threaded ball valve with  pneumatic actuator. They are typically used in high pressure application. Through rotate 90 degrees (quarter-turn) to change the flow diretion. Pneumatic valves are designed for quick opening and closing, it is often the case that compressed air is available.Solenoid valve use for control the air inlet to the pneumatic actuator in order to control it remotely.



High Pressure Female threaded ball valve (PN315 bar, or PN500 bar), vale size is from DN10-DN100, end port can be theaded, flanged, or welded.

Pnematic Actuator, brand Veapon is our own brand. Double acting or Single acting for you select.



The valve with ISO5211 mounting pad. There's a mounting bracket between valve and pneumatic actuators, the function is to protect the actuator avoid the damage from high pressure of the medium in valves.



On the top side of actuators, we can add limit switch box, positioner, or othere accessories.

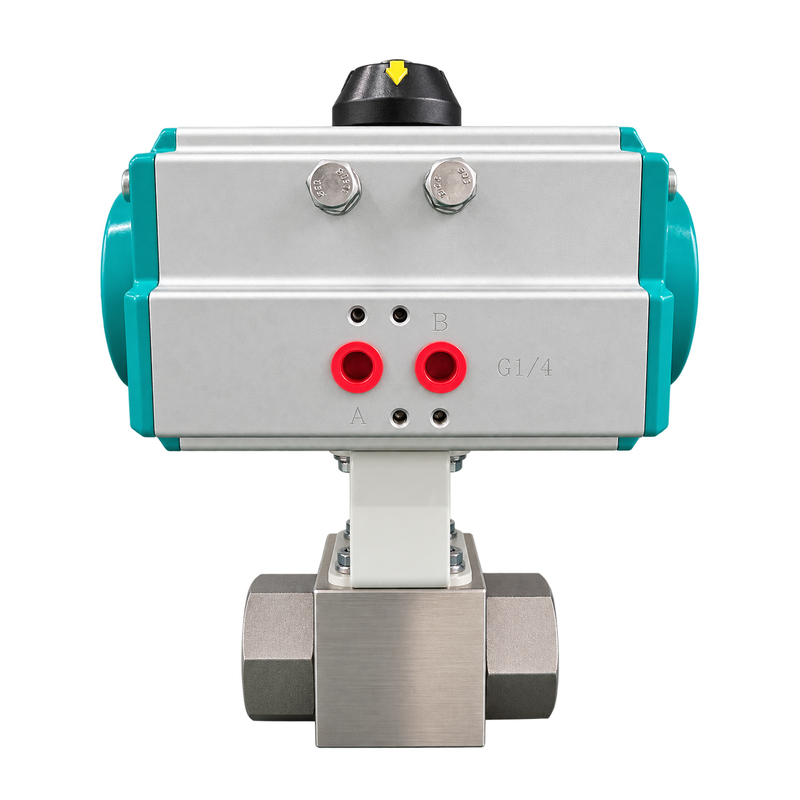

On back side of the actuators, we can add a solenoid valve to change the direction of the air inlet to realize remoting control of the valves.
