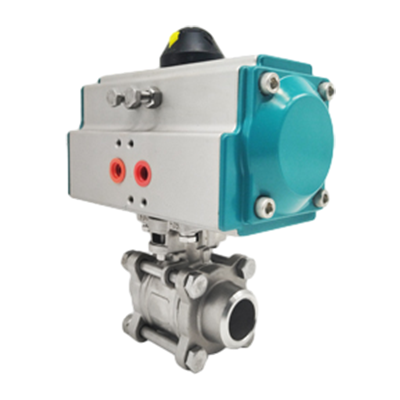

Pneumatic Butt Weld Ball Valve

Specifications:
Valve Body material:WCB, SS304,SS304L,SS316,SS316L,
CF8,CF8M,CF3,CF3M(Customizable)
Standard: ANSI,JIS,DIN,GB
DN size: DN8-DN100 (1/4"~4")
Pressure: PN16, PN25, PN40,PN64
End connection: Butt welding, Socket welding
Valve Seat: PTFE, RPTFE, PPL
Actuator Brand: VEAPON
Actuator style: Double acting, Single Acting with spring return
Power supply: Air compressor
Rotation Angle: Standard type (0-90°)±5°
Availability:
Quantity:

Pneumatic Butt Welding Ball Valve Description


Pneumatic butt welding ball valve with integrated structure can be drived by air cylinder (double acting or single acting with spring return), with the characters of small volume, high flow capacity, high regulation precision, good sealing, and light weight, etc. The valve is widely used in food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equipment, and electric power industries of industrial automation control systems.


Pneumatic Butt Welding Ball Valve Design Features

Butt welding connection ball valve can be divided into 1-piece, 2-piece, 3- piece. Body casting adopt the advanced technology from Japan, with reasonable structure and beautiful shape. The elastic sealing structure make the seat reliable and easy to close and open, valve stem adopt the lower structure with inverted seal, It is impossible to rush out the valve stem when the temperature of valve chest increase, The end connection of the 2-piece, 3-piece ball valve with locking devices in compliance with international standard ISO platform.


How Does a Pneumatic Actuated Ball Valve Work

The pneumatic butt welding ball valve is a ball valve with a pneumatic actuator. Pneumatic actuator execution speed is relatively fast, with the fastest switching speed of 0.05 seconds/time, so it is usually also called a pneumatic quick shut-off ball valve.

Pneumatic butt welding ball valves are usually configured with various accessories, such as solenoid valves, air source processing filters, limit switches, etc, to achieve local control and remote centralized control, in the control room can control the valve switch, with no need to run to the site or high altitude and dangerous place to control, large extent to save human resources as well as time and improve safety.

Pneumatic ball valves are classified by material: stainless steel, ductile iron, carbon steel, plastic pneumatic ball valves, etc. The valve size usually is from DN8-DN100 (1/4"~4"), pressure are classified as 1000 wog ,150Lb, 300Lb,600Lb.
