Electric Flange Ball Valve

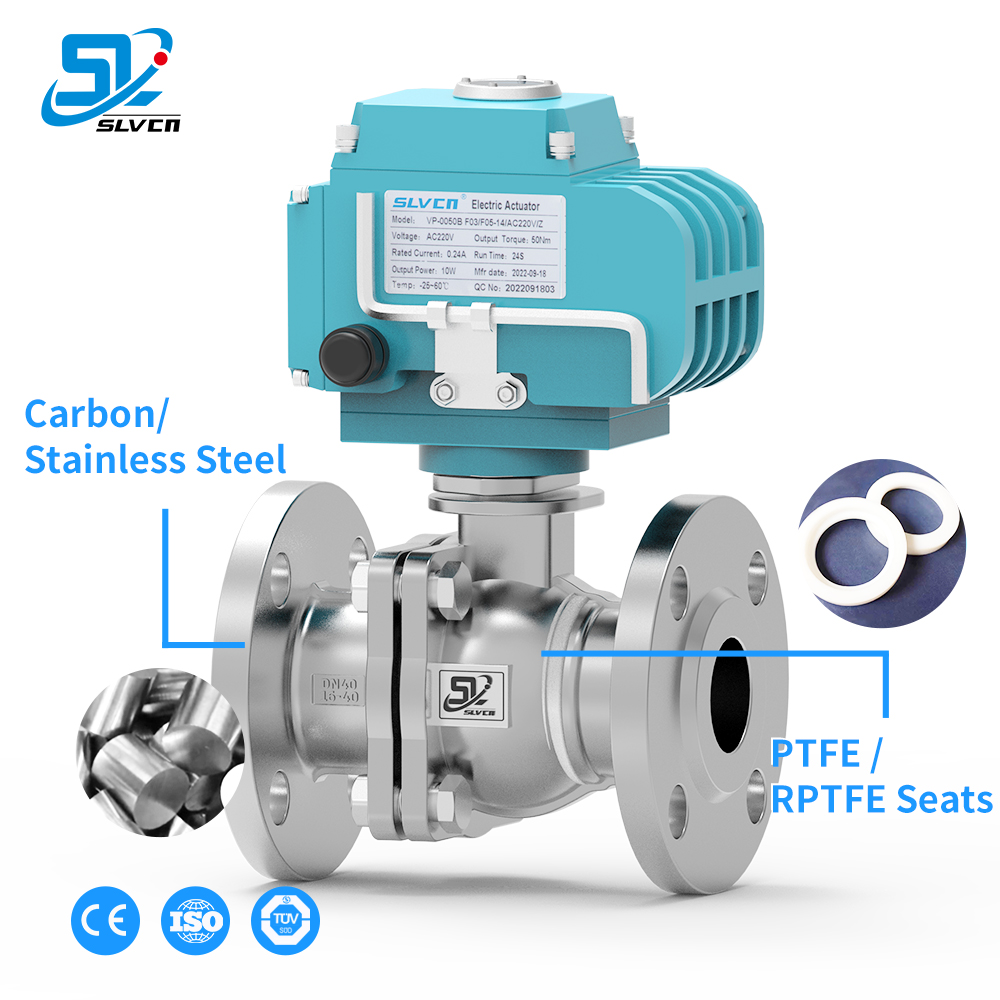

Valve Body material:WCB, SS304,SS304L,SS316,SS316L,
CF8,CF8M,CF3,CF3M(Customizable)

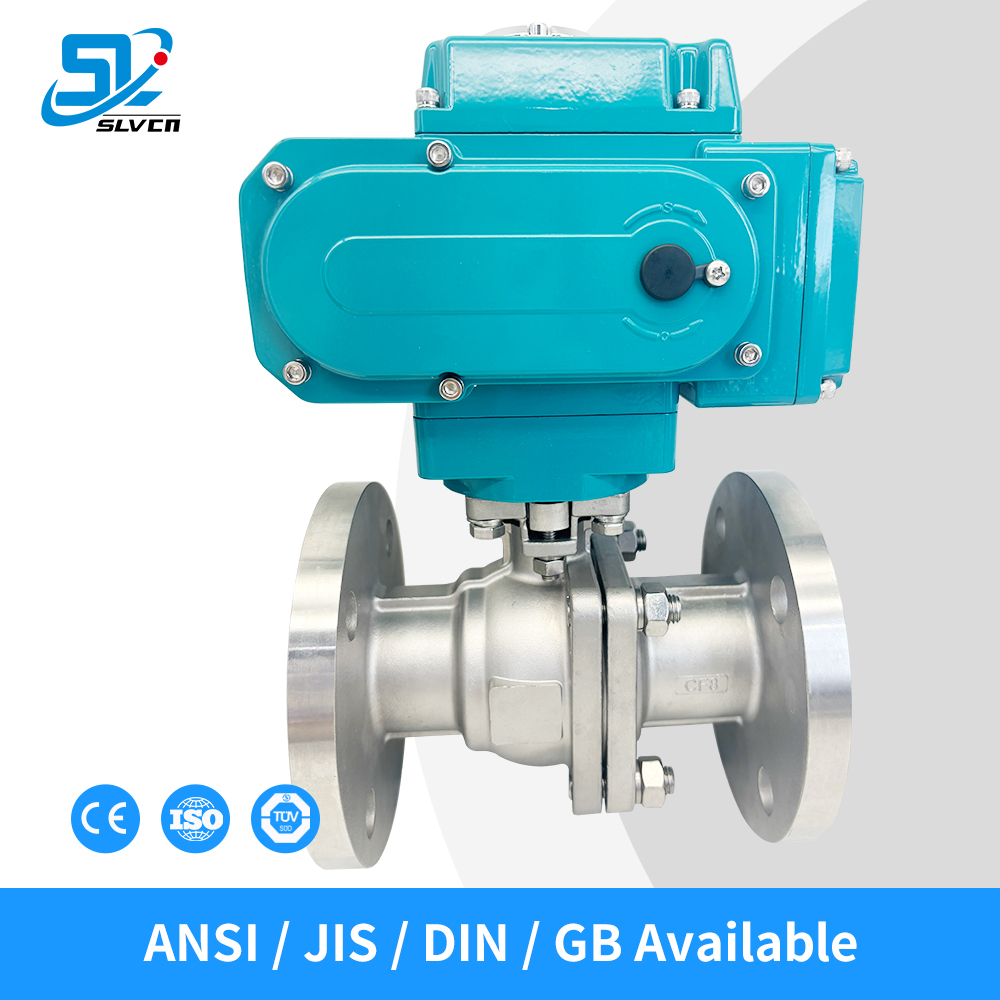

Standard: ANSI,JIS,DIN,GB
DN size: DN15-DN200 (1/2"~8")
Pressure: PN16, PN25, PN40,PN64
Valve Seat: PTFE, RPTFE, PPL

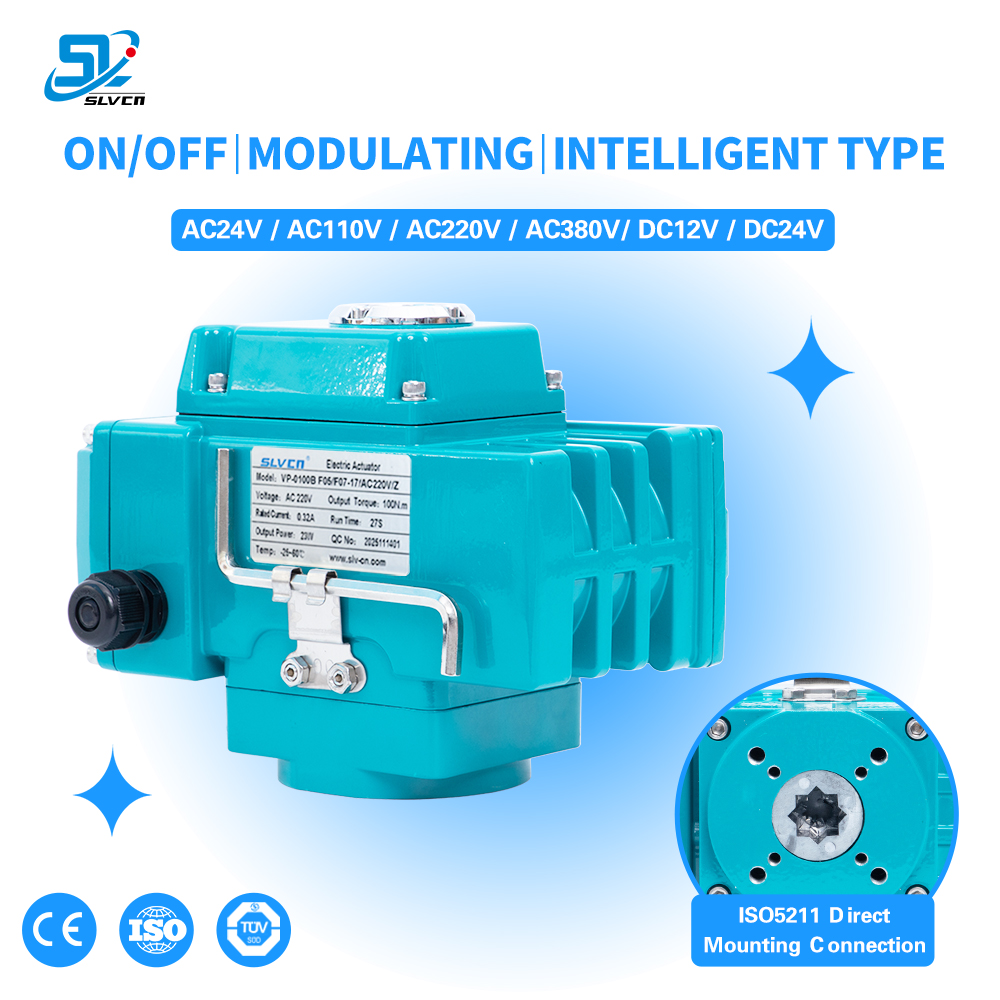

Actuator Brand: VEAPON
Actuator style: ON-OFF type, Intelligent regulated type 4-20mA
Power supply: DC12V,DC24V,DC220V,AC24V,AC110V,AC220V,AC380V
Rotation Angle: Standard type (0-90°)±5°
Availability:
Quantity:

ELECTRIC FLANGE BALL VALVE DESCRIPTION

Electric Ball Valve is a kind of valve for 90° rotation,with the characteristics of fine sealing performancejarge flow capability,small flow resistant coefficient.simple structure and long service life.The valve passage is equal to the connecting pipe,and the medium can nearly flow through it without the loss.

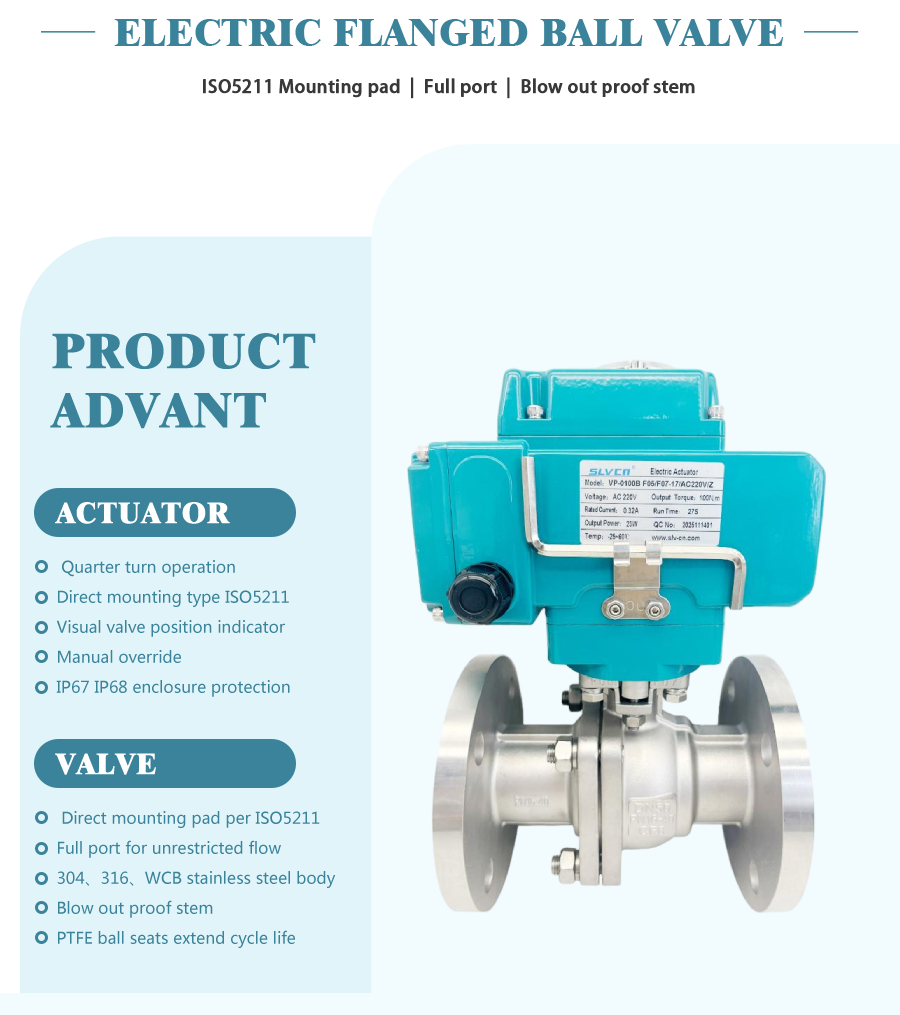

ELECTRIC FLANGE BALL VALVE CHARACTERISTICS

  • Small flow resistance.The ball valve has smallest flow resistance among all valves.The flow resistance is very small even the reduced bore ball valve.

  • Thrust shaft bearing can reduce the fricative torque of vale shaft in order to make the shaft operation balance.

  • Valve seat with a good sealing performance by adopting PTFE as the seal ring. And the sealing performance can be better with the increase of pressure.

  • The packing sealing is not easy to destroy due to the rotary movement of valve stem, sealing performance will be increased with the increased medium's pressure.

  • PTFE's self-lubrication features can reduce the fricative to make the service life long.
