Electric Sanitary Clamp Ball Valve

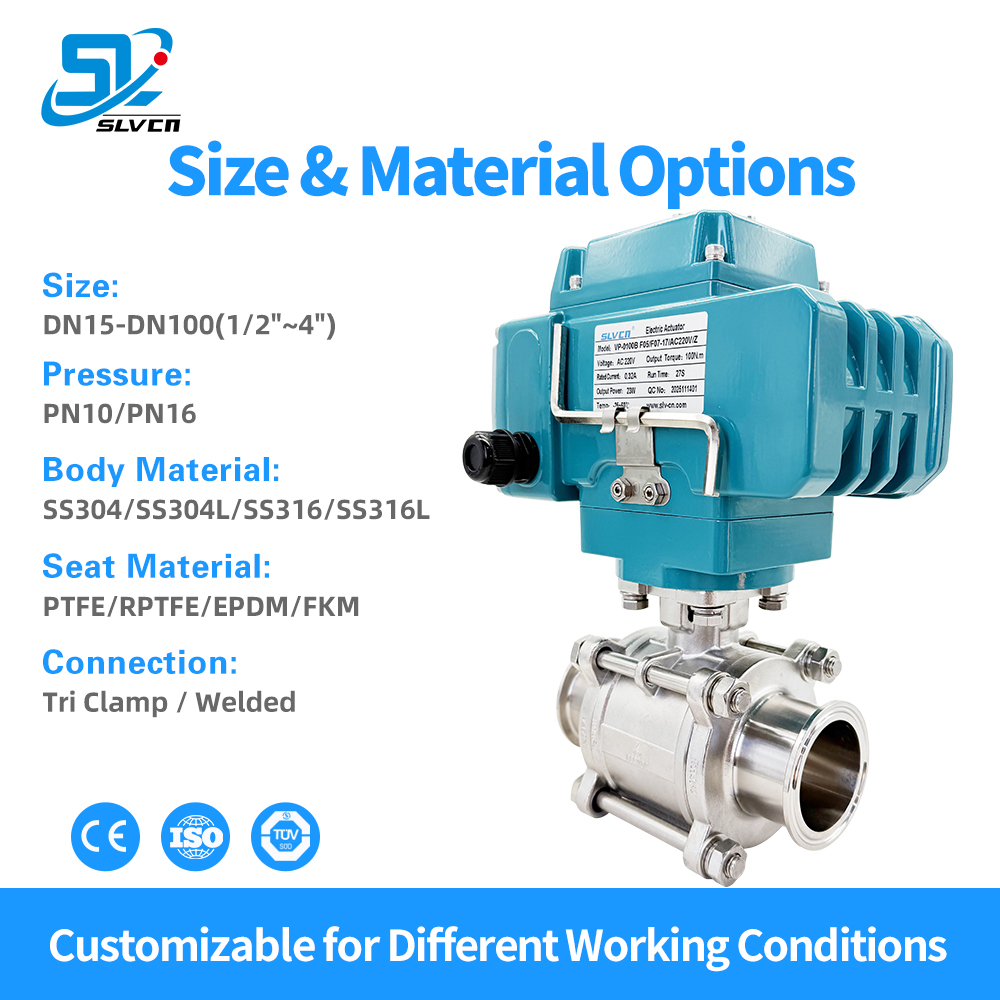

Connection Size: DN15-DN100 (1/2"~4"), Larger Sizes Available
Working Pressure: PN10 / PN16, Vacuum Service Available
Body Material: SS304/CF8, SS304L/CF3, SS316/CF8M, SS316L/CF3M
Seat Material: PTFE, RPTFE, EPDM, FKM Optional
Seat Structure: Full Encapsulated / Semi Encapsulated
Connection Type: Tri Clamp, Butt Weld

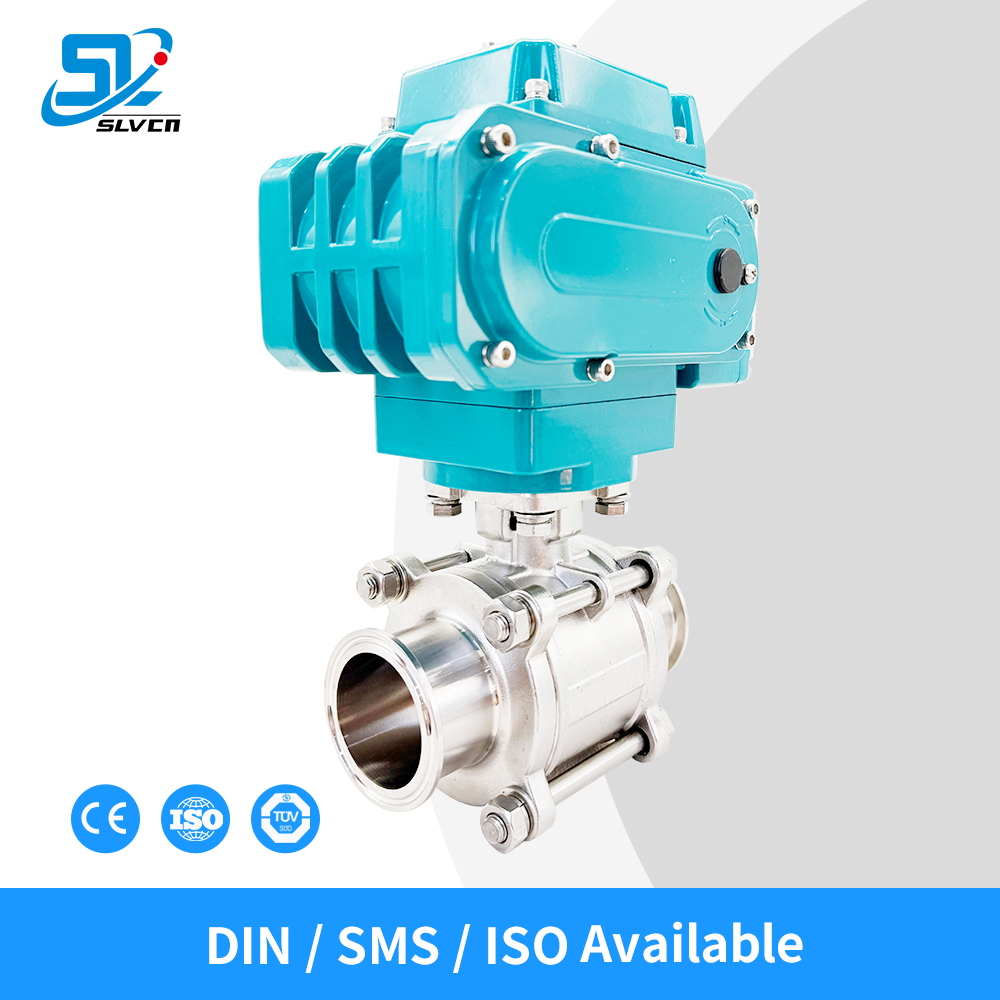

Standards: 3A, DIN, SMS, IDF, ISO
Actuator Type: ON/OFF, Modulating, Intelligent Control
Power Supply: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Protection Class: IP65 Standard, IP67 / IP68 Optional
Optional Features: Explosion Proof, RS485, Modbus, Position Feedback
Mounting Standard: ISO 5211
Suitable Media: Food Fluid, Beverage, Dairy Liquid, Pure Water, CIP Cleaning Fluid
Applications: Food Processing, Brewery, Dairy, Pharmaceutical & Hygienic Pipeline Systems
Brand: SLVCN / VEAPON

Availability:

Quantity:



Inquire Add to Basket

Product Description

Electric 3 Piece Sanitary Clamp Ball Valve | SLVCN

SLVCN Electric Sanitary Three-Piece Clamp Ball Valve is designed for hygienic process systems in food, beverage, dairy, brewery, cosmetic, and pharmaceutical industries. Featuring a smooth full port structure and dead space free design, it provides reliable CIP/SIP cleaning performance.

Available in SS304, SS304L, SS316, and SS316L stainless steel with multiple seat materials and encapsulated structure options for different sanitary applications.

Why Choose SLVCN Electric Sanitary Clamp Ball Valve?

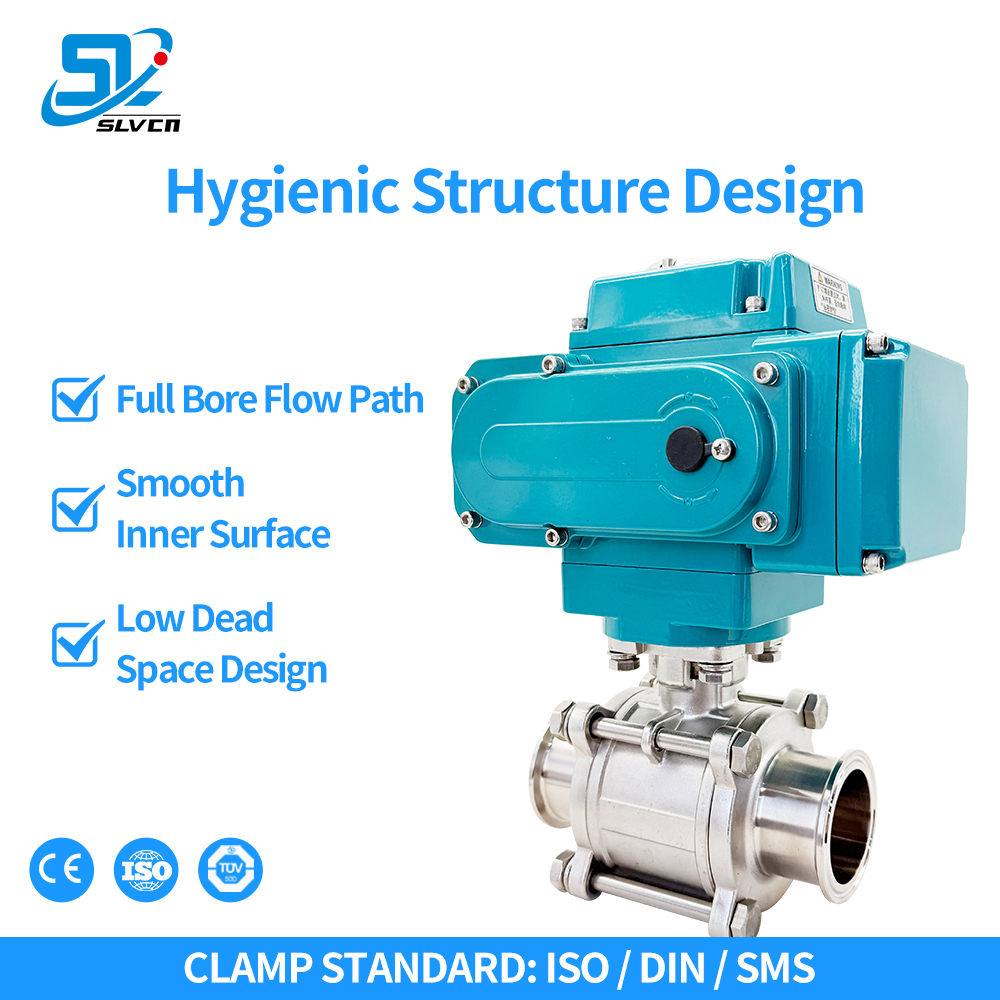

● Hygienic Full Port Design

Smooth full bore structure with dead space free design helps reduce product residue and supports reliable CIP/SIP cleaning performance.

● Easy Installation & Maintenance

Three-piece clamp structure allows quick installation, easy disassembly, and convenient seal replacement without removing the pipeline.

● Reliable Stainless Steel Construction

Available in SS304, SS304L, SS316 and SS316L stainless steel with multiple seat material options for different hygienic process requirements.

● Automation Ready

ISO 5211 mounting pad design supports ON/OFF, modulating, and intelligent electric actuator configurations.

● Tested for Reliable Performance

Each valve is pressure and leakage tested before delivery to ensure reliable sealing and stable operation in sanitary applications.

How to Choose Electric Sanitary Clamp Ball Valve?

Selecting the proper seat material and encapsulated structure is important for hygienic performance, temperature resistance, chemical compatibility, and CIP/SIP cleaning requirements in sanitary process systems.

Seat Material Selection

Seat Material	Temperature Range	Features	Suitable Applications
PTFE	-20°C to 180°C	Excellent chemical resistance	Food, beverage, general sanitary applications
RPTFE	-20°C to 200°C	Enhanced wear resistance and dimensional stability	Higher performance sanitary systems
EPDM	-20°C to 120°C	Good hot water and CIP resistance	Dairy, hot water, CIP cleaning systems
FKM	-10°C to 200°C	High temperature and chemical resistance	Chemical media and high temperature applications

Encapsulated Structure Guide

Structure Type	Features	Recommended Applications
Full Encapsulated	Improved hygienic performance and reduced media residue	Pharmaceutical, CIP/SIP, high cleanliness systems
Semi Encapsulated	Cost-effective and easy maintenance	General food and beverage applications

Applications:

Designed for hygienic process systems requiring low residue, reliable sealing, and efficient CIP/SIP cleaning performance.

• Food & Beverage Processing
• Dairy & Milk Processing
• Brewery & Fermentation Systems
• Pharmaceutical & Biotech Pipelines
• Cosmetic & Personal Care Production
• CIP/SIP Cleaning Systems
• Pure Water & Hygienic Fluid Control
