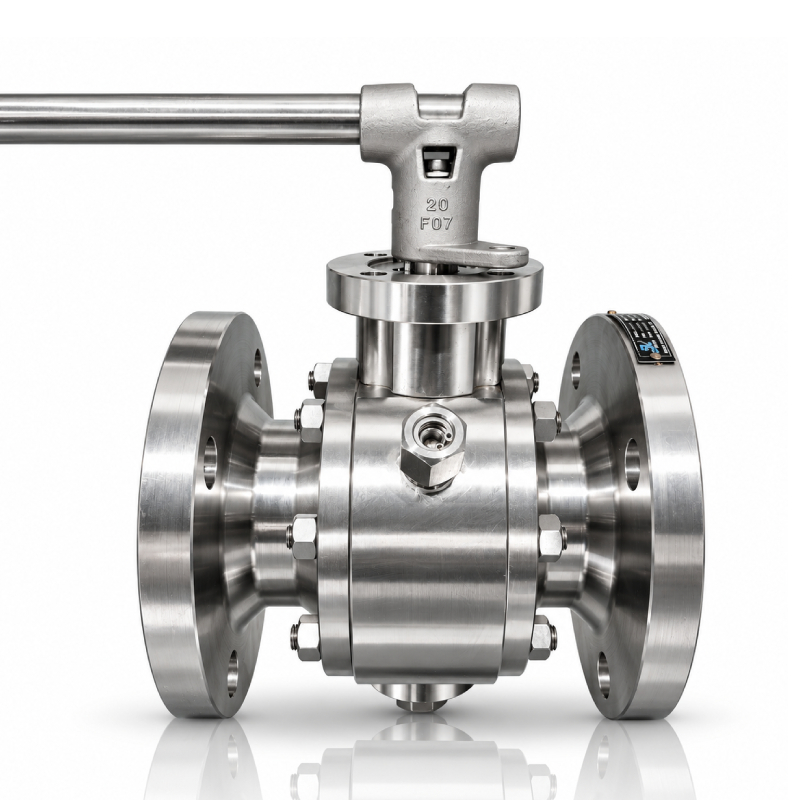

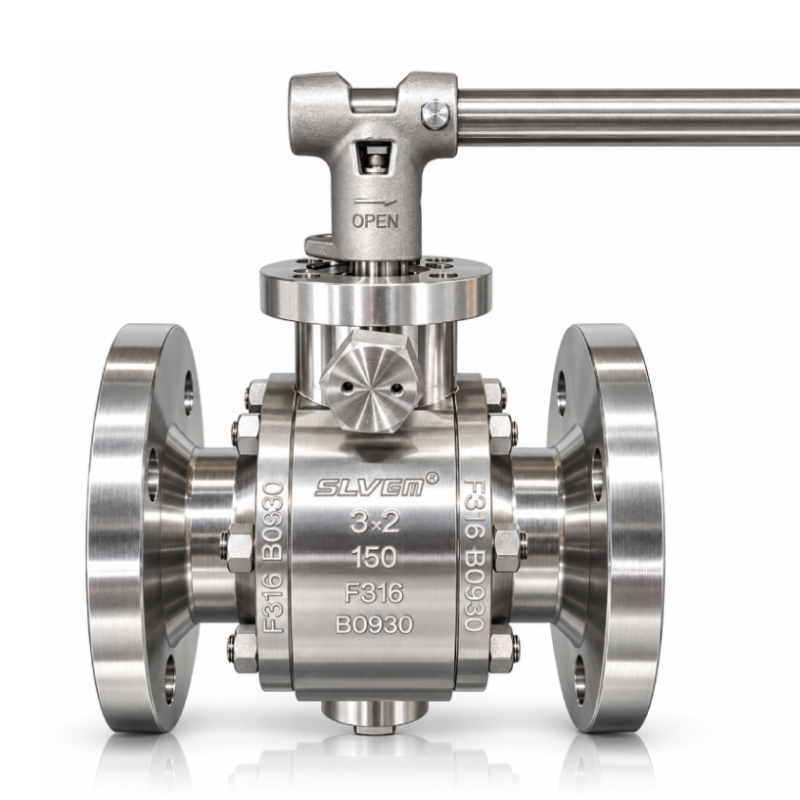

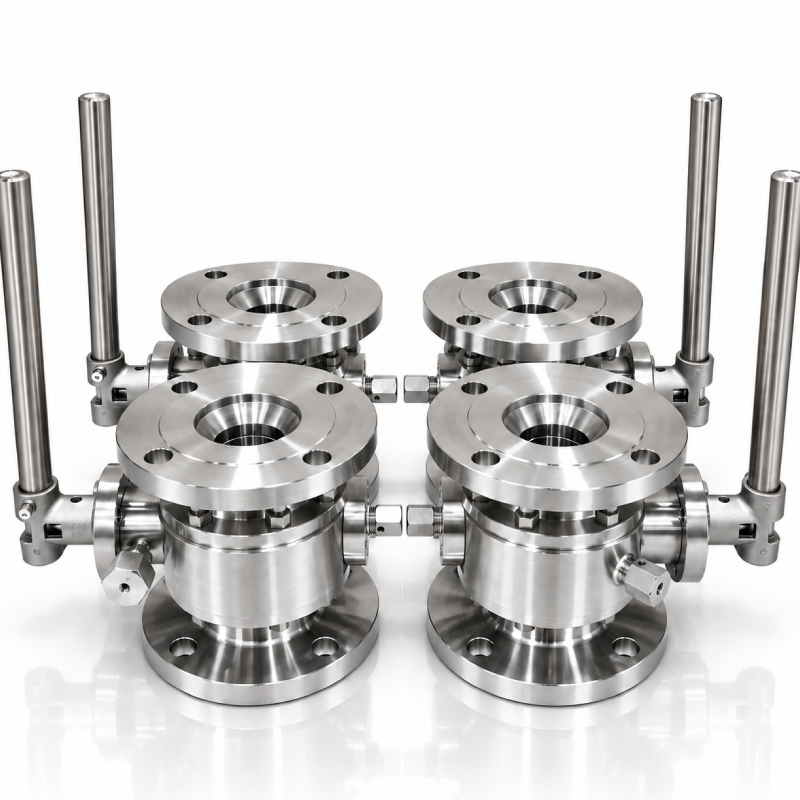

Forged Trunnion Mounted Ball Valve with Lockable Handle

Specifications:
Size Range: 2"-36" / DN50-DN900; larger sizes optional
Pressure Rating: ASME Class 150 / 300 / 600 / 900 / 1500 / 2500
Bore Type: Reduced Bore/Full Bore optional
End Connection RF / RTJ Flanged; Butt Weld optional
Body Material: A105N / LF2 / F304 / F316 / F51 / F53
Seat Material: PTFE / RPTFE / Devlon / PEEK; Metal Seat optional
Temperature Range: -29°C to +150°C standard; other ranges by configuration

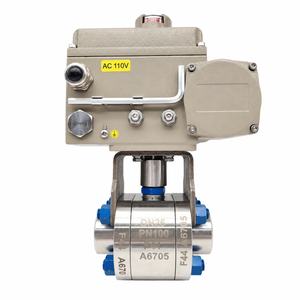

Operation: Lockable Lever / Worm Gear / Electric / Pneumatic / Hydraulic
Standards & Testing: ASME B16.34 / API 598; API 6D available by project requirement

Availability:

Quantity:



Inquire Add to Basket

Product Description

SLVCN Forged Trunnion Mounted Ball Valve with Reduced Bore and Lockable Handle is designed for reliable pipeline isolation in oil & gas, natural gas, petrochemical, chemical and general industrial piping systems.

The forged side-entry body and trunnion mounted ball structure provide stable ball support and reliable operation under pipeline pressure. Reduced bore design helps reduce valve size and weight while maintaining practical flow capacity, with full bore configuration also available. RF, RTJ flanged ends and butt-weld ends can be supplied according to pipeline requirements.

Body materials including A105N, LF2, F304, F316, F51 and F53 are available with PTFE, RPTFE, Devlon, PEEK or metal seat options. Lockable lever, worm gear, electric, pneumatic or hydraulic operation can be selected according to valve size, torque and project requirements.
