High Pressure Cryogenic Trunnion Ball Valve with ISO 5211 Mounting Pad

Specifications:
Size Range: 2"-20" / DN50-DN500; larger sizes optional
Pressure Rating: ASME Class 150 / 300 / 600 / 900 / 1500 / 2500
Temperature Range: Down to -196°C for selected configurations
End Connection: RF / RTJ Flanged; Butt Weld optional
Body Material: F304 / F304L / F316 / F316L; special alloys optional
Seat Material: PCTFE / PTFE / RPTFE / PEEK
Stem Design: Extended Stem / Extended Bonnet for cryogenic service
Operation: Worm Gear / Electric / Pneumatic / Hydraulic
Standards & Testing: ASME B16.34 / API 598 / ISO 5208; cryogenic testing optional

Availability:

Quantity:



Inquire Add to Basket

Product Description

SLVCN High Pressure Cryogenic Trunnion Mounted Ball Valve is designed for LNG, industrial gas, cryogenic storage and low-temperature pipeline isolation applications.

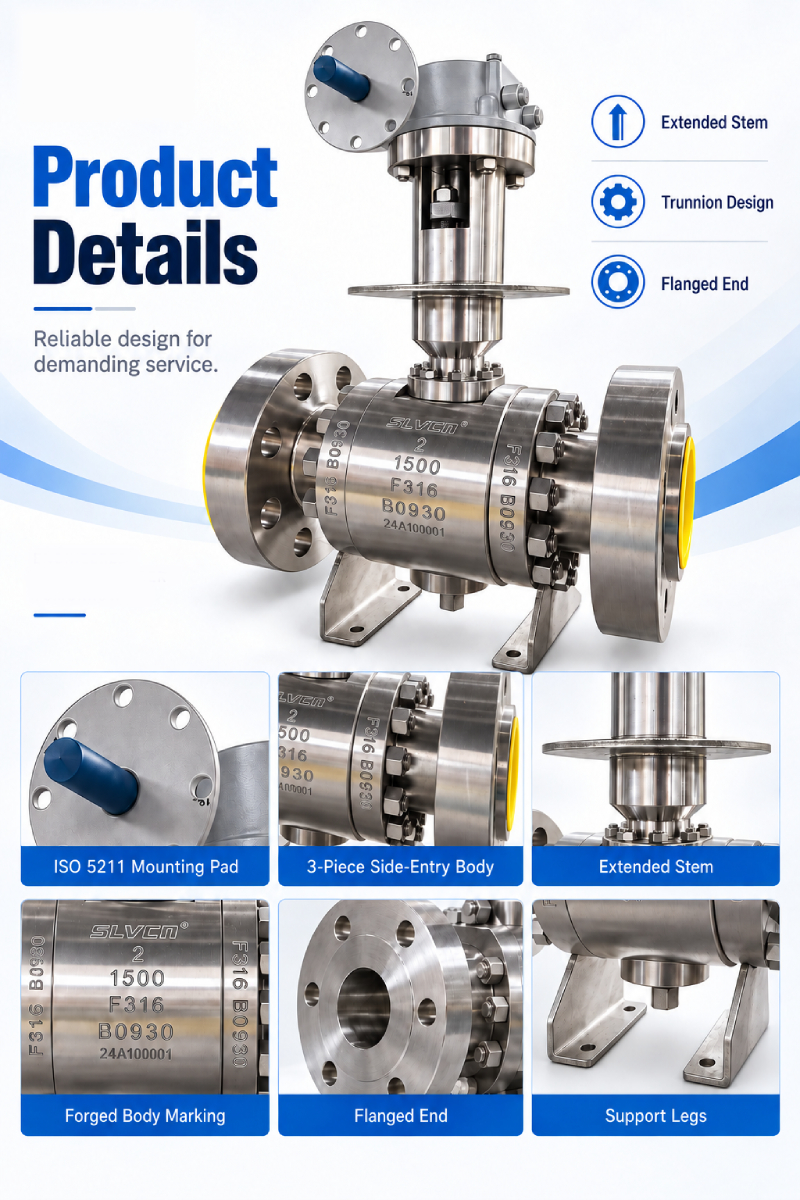

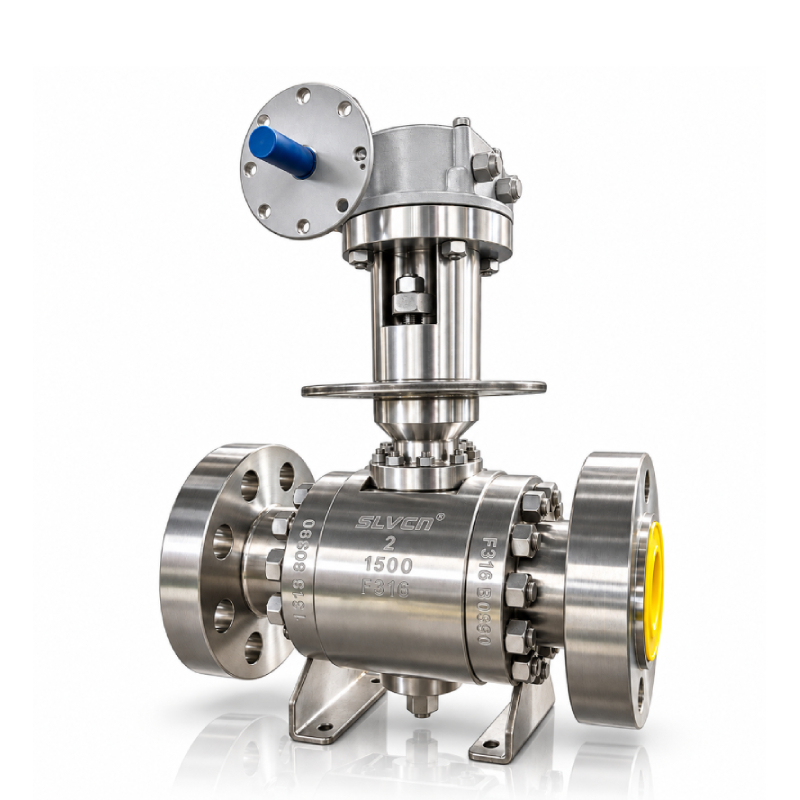

The forged side-entry bolted body and trunnion mounted ball structure support stable operation in high-pressure cryogenic service. An extended stem / bonnet design helps keep the stem packing area away from the low-temperature zone and provides clearance for pipeline insulation. The sample shown is a 2" ASME Class 1500 F316 cryogenic ball valve with RTJ flanged ends.

F304, F316 and F316L body materials are available with PCTFE, PTFE, RPTFE or PEEK seat options, selected according to operating temperature, pressure and medium. RF, RTJ or butt-weld ends and worm gear, electric, pneumatic or hydraulic operation can be supplied according to project requirements. Selected cryogenic configurations are available for service temperatures down to -196°C.
