How Ball Valves Work: The Key To Efficient Fluid Control

Ball valves are essential components in fluid control systems, valued for their simple structure, exceptional sealing performance, and rapid operation. These advantages make them widely used in industries such as oil & gas, chemical processing, power generation, and more. This article explores the fundamental working principles of ball valves, providing a clear understanding of how they function and why they are so effective in fluid control applications.

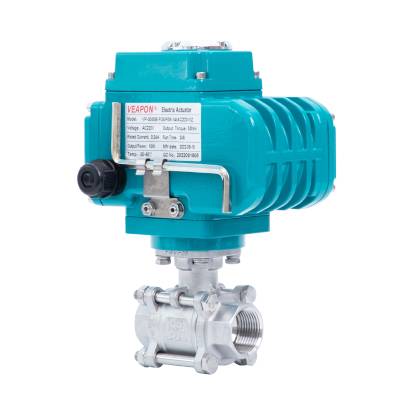

Electric Ball Valve

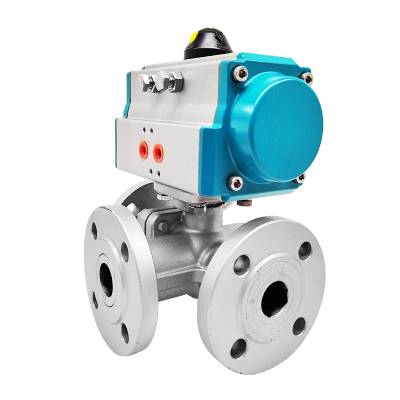

Pneumatic Ball Valve

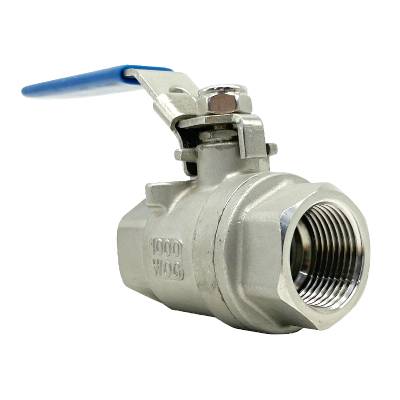

Manual Ball Valve

1. Why Are Ball Valves the Key to Efficient Fluid Control?

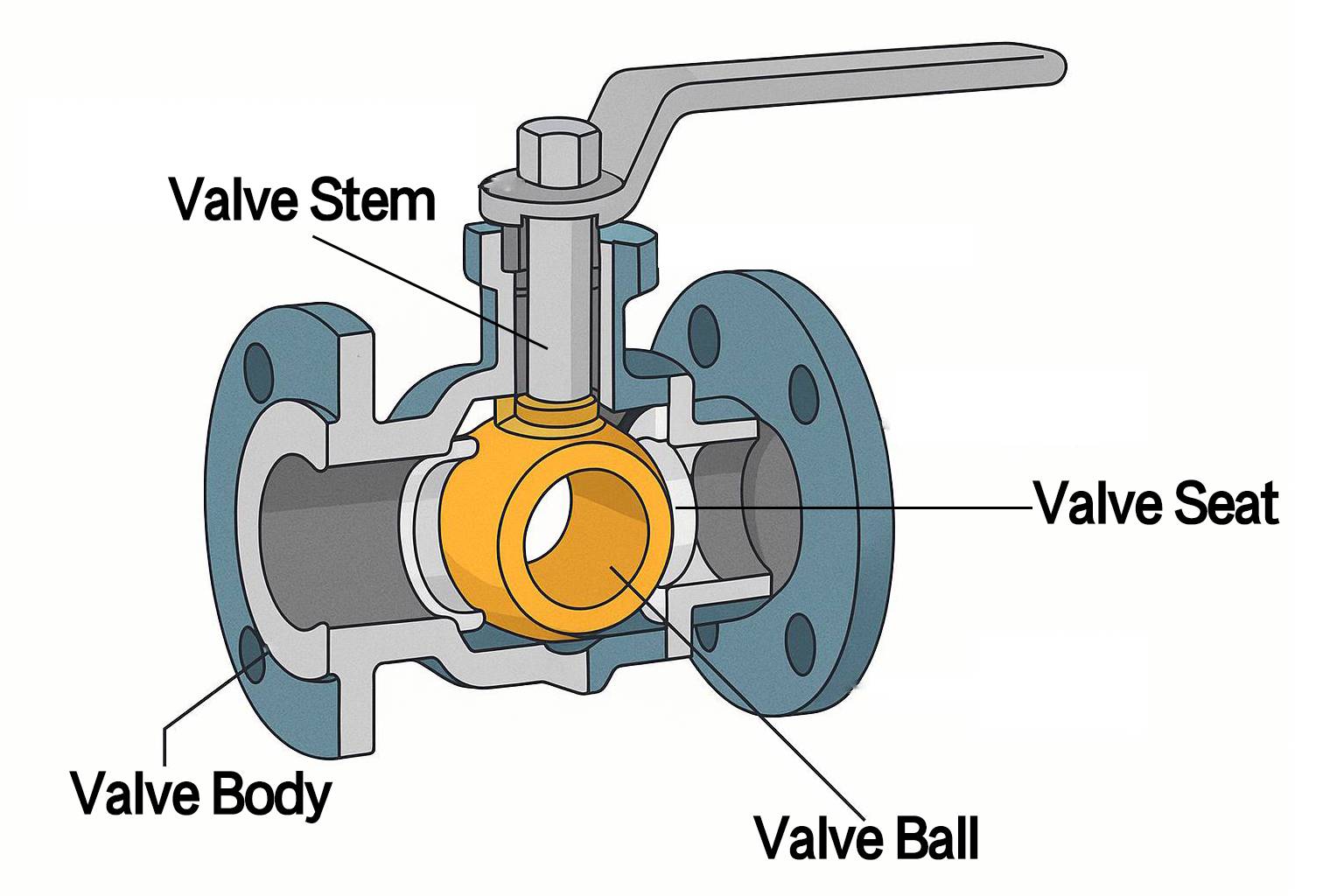

The working principle of a ball valve is closely tied to its structure. Key components of a ball valve include:

Valve Body: The valve body serves as the outer casing of the ball valve, typically made of durable metals like stainless steel or carbon steel. It supports the internal components and provides structural integrity.

Ball (Valve Core): The ball is the heart of the valve, featuring a central hole (also called the flow passage) that controls fluid flow. By rotating, the ball opens or closes the flow path, directly affecting the valve's operation.

Seat: Also known as the sealing ring, the seat ensures no leakage when the valve is closed. It is typically made of either soft materials like PTFE, RPTFE, PPL, or PEEK, or harder materials like 304 stainless steel, tungsten carbide, or ceramic, depending on the application.

Stem: The stem connects the ball to the actuator (manual, pneumatic, or electric) and transmits rotational motion, enabling the valve to open and close smoothly.

Optional Add-On – Actuator:
While not part of the valve body itself, ball valves can be operated by different actuators. These include manual handles, pneumatic actuators powered by compressed air, or electric actuators for automated control. The choice of actuator depends on the system’s level of automation and frequency of operation.

2.How Do Ball Valves Work? A Simple Yet Powerful Fluid Control Solution

Ball valves operate by rotating a ball to regulate the flow of fluid. The operation is straightforward, as explained below:

Open State: When the valve is open, the hole in the ball aligns with the pipeline’s flow direction, allowing fluid to flow freely through the valve and ball.

Closed State: When the valve rotates 90 degrees, the ball's hole no longer aligns with the flow direction, stopping the flow and closing the valve.

Rotational Control: Ball valves generally operate with a 90-degree rotation for open/close control. This simple rotation allows quick fluid flow control. Different actuators (manual, pneumatic, or electric) drive the rotation to achieve seamless flow management.

3.How Ball Valves Can Benefit Your System: Quick, Reliable, and Cost-Effective?

Ball valves offer numerous benefits due to their design and working principle:

Quick Operation: Ball valves can open or close in just 90 degrees, making them ideal for applications requiring rapid fluid shut-off.

Excellent Sealing: With superior sealing performance, ball valves are perfect for controlling high-pressure, high-temperature, and corrosive fluids.

Simple Design: The straightforward design of ball valves, with fewer parts, makes them easy to maintain and cost-effective.

Ease of Use: The simple 90-degree rotational operation ensures ball valves are easy to operate, even in systems with frequent on/off cycles.
