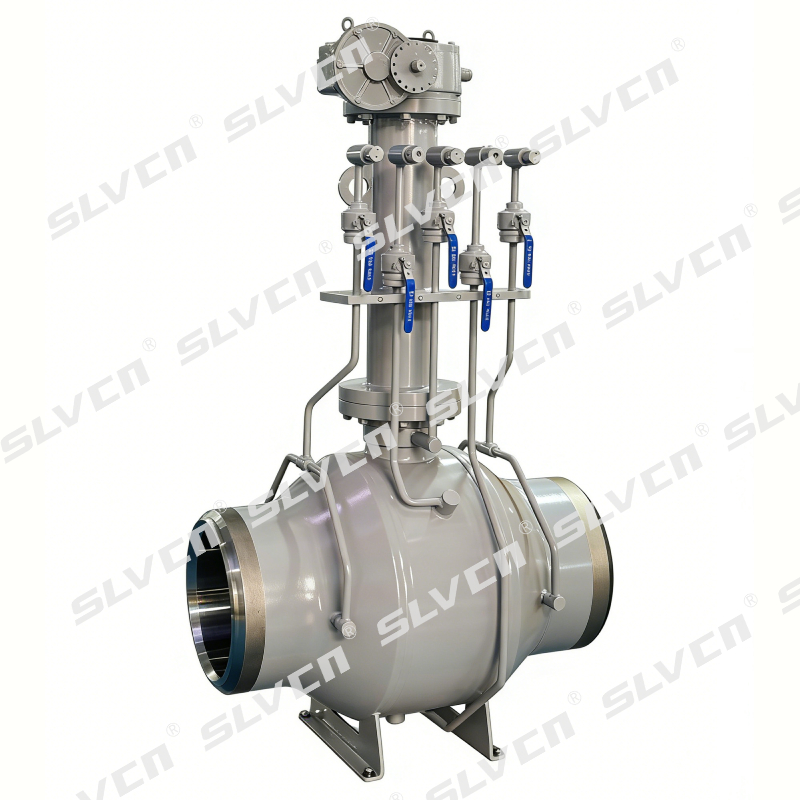

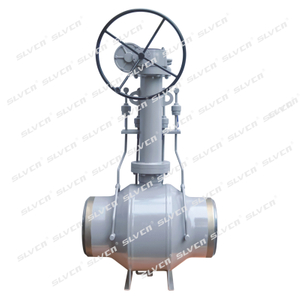

Class 300 Trunnion-Mounted Ball Valve with Extended Stem for Underground Pipelines

Size Range: 2" to 64" (DN50–DN1600)
Pressure Rating: Class 300 (Optional Class 150/600/900/1500)
Operating Temperature: -46℃ to 450℃ (Material Dependent)
Ball Type: Trunnion-mounted, Fully Welded One-Piece Body
Sealing Design: Double Block-and-Bleed (DBB) with optional emergency sealant injection for added security
End Connection: Butt Weld (BW) / Socket Weld (SW)
Operation Types: Manual, Worm Gear, Electric, Pneumatic
Brand: SLVCN

Availability:

Quantity:



Inquire Add to Basket

Brand:
SLVCN

Product Description

Product Description

SLVCN Class 300 Fully Welded Trunnion-Mounted DBB Ball Valve with Extended Stem is designed for reliable flow control in underground, buried, and harsh pipeline applications. The valve's fully welded one-piece body eliminates flange leakage points, ensuring long-term reliability in medium-pressure pipelines. The trunnion-mounted DBB design offers stable operation, safe isolation, and easy venting during maintenance or emergencies. The extended stem ensures reliable operation in underground or buried installations, even if stem seals fail. Safety features include fire-safe spring-loaded seats, anti-static protection, and an anti-blowout stem. Customizable materials (including Carbon Steel, Stainless Steel, Alloy Steel, PEEK, and PCTFE) are available to meet specific temperatures, pressures, and media requirements.

Key Features

✓ Fully Welded One-Piece Body

One-piece welded structure eliminates external leakage paths and improves structural integrity under high-pressure conditions.

✓ Extended stem for buried service
Reliable operation in underground installations, even if stem seals fail.

✓ Leak-resistant welded body
Fully welded, one-piece construction minimizes leakage and ensures long-term reliability.

✓ Low-torque operation with safe isolation
Trunnion-mounted design absorbs pressure for smooth operation; DBB design ensures secure venting and isolation.

✓ Enhanced safety and flexible materials
Anti-blowout stem, anti-static device, fire-safe seats, and customizable materials for various media and temperatures.

Technical Specifications

double block and bleed ball valve Dimensions: Class 300 - Full Port

Size	Bore		Model / Face to Face				D in/mm	D1 in/mm	Weight
NPS/DN	B1in/mm	B2 in/mm	FF,FW RF in/mm	FF,FW RTJ in/mm	FF BWE in/mm	FW BWE in/mm	D in/mm	D1 in/mm	Model FF lb/kg	Model FW lb/kg
2"	1.94	1.94	8.5	9.13	8.5	11	6.5	6.5	60	60
50	49	49	216	232	216	279	166	166	27	27
3"	2.94	2.94	11.13	11.75	11.13	12.5	8.5	8.5	132	132
80	74	74	283	298	283	318	216	216	60	60
4"	3.94	3.94	12	12.63	12	14	10.1	10.1	179	179
100	100	100	305	321	305	356	256	256	81	81
6"	5.94	5.94	15.88	16.5	18	18	12.9	12.9	408	397
150	150	150	403	419	457	457	328	328	185	180
8"	7.94	7.94	19.75	20.38	20.5	21.5	16.3	15.9	688	659
200	201	201	502	518	521	546	413	404	312	299
10"	9.94	9.94	22.38	23	22	23.5	19.1	18.5	1038	977
250	252	252	568	584	559	597	485	470	471	443
12"	11.94	11.94	25.5	26.13	25	26.5	23.6	22.8	1883	1713
300	303	303	648	664	635	673	600	580	854	777
14"	13.19	13.19	30	30.63	30	28.5	24	23.4	2130	1962
350	334	334	762	778	762	724	610	595	966	890
16"	15.19	15.19	33	33.63	33	30.5	27.6	26.8	3031	2785
400	385	385	838	854	838	775	700	680	1375	1263
18"	17.19	17.19	36	36.63	36	33.5	31.1	30.7	4145	4012
450	436	436	914	930	914	851	790	780	1880	1820
20"	19.19	19.19	39	39.75	39	35.5	34.1	33.6	5236	4996
500	487	487	991	1010	991	902	865	854	2375	2266
22"	21.19	21.19	43	43.88	43	38.5	37.1	36.6	6371	6129
550	538	538	1092	1114	1092	978	943	930	2890	2780
24"	23.19	23.19	45	45.88	45	42	40.6	40.2	8380	7963
600	589	589	1143	1165	1143	1067	1031	1020	3801	3612

Weight and dimensions for larger valve sizes up to 64" available on request

Dimensions: Class 300 - Reduced Port

Size	Bore		Model / Face to Face				D in/mm	D1 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	GG, GW RF in/mm	GG, GW RTJ in/mm	GG BWE in/mm	GW BWE in/mm	D in/mm	D1 in/mm	Model GG lb/kg	Model GW lb/kg
2"×11/2"	1.94	1.5	8.5	9.13	8.5	11	6.5	6.5	57	57
50×40	49	38	216	232	216	279	166	166	26	26
3"×2"	2.94	1.94	11.13	11.75	11.13	12.5.	8.3	8.3	88	88
80×50	74	49	283	298	283	318	211	211	40	40
4" X3"	3.94	2.94	12	12.63	12	14	10.1	10.1	154	154
100×80	100	74	305	321	305	356	256	256	70	70
6" ×4"	5.94	3.94	15.9	16.5	18	18	12.6	12.6	251	251
150×100	150	100	403	419	457	457	321	321	114	114
8"×6"	7.94	5.94	19.8	20.38	20.5	21.5	15	15	481	468
200×150	201	150	502	518	521	546	381	381	218	212
10"X8"	9.94	7.94	22.4	23	22	23.5.	17.6	17.6	769	737
250×200	252	201	568	584	559	597	446	446	349	334
12"×10"	11.94	9.94	25.5	26.13	25	26.5	20.5	20.5	1164	1095
300×250	303	252	648	664	635	673	521	521	528	496
14"×10"	13.19	11.94	30	30.63	30	28.5	23.1	23.1	1340	1261
350×250	334	252	762	778	762	724	586	586	608	572
14"×12"	13.19	11.94	30	30.63	30	28.5	23.6	23.1	2134	1942
350×300	334	303	762	778	762	724	600	586	968	881
16"×12"	15.19	11.94	33	33.63	33	30.5	25.6	25.6	2236	2034
400×300	385	303	838	854	838	775	651	651	1014	922
20"X16"	19.19	15.19	39	39.75	39	35.5	30.6	30.6	3446	3166
500×400	487	385	991	1010	991	902	776	776	1563	1436
24"×20"	23.19	19.19	45	45.88	45	42	36.1	36.1	5792	5525
600×500	589	487	1143	1165	1143	1067	916	916	2627	2506
28"×24"	26.94	23.19	53	54	53	47	40.7	40.7	9083	8631
700×600	684	589	1346	1372	1346	1194	1035	1035	4120	3915
