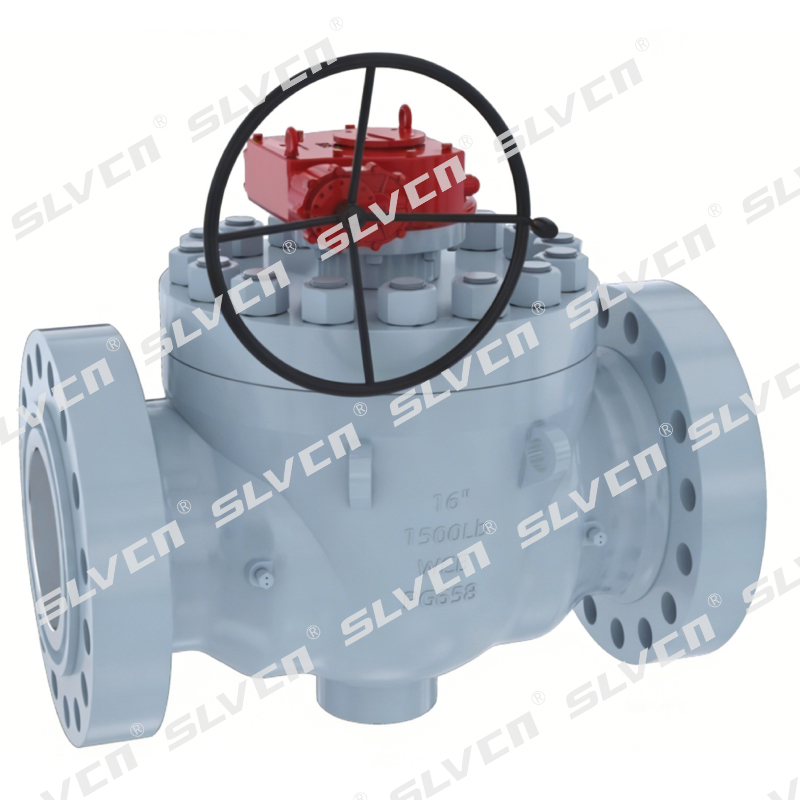

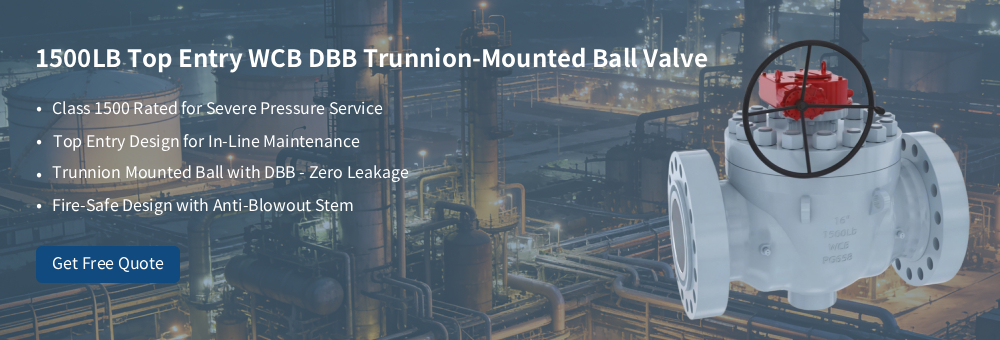

1500LB Top Entry WCB DBB Trunnion-Mounted Ball Valve

Size Range: 2" to 56" (DN50–DN1400, larger sizes on request)
Pressure Rating (Standard): ASME 1500LB
Other Pressure Classes: ASME Class 150–2500，available on request
Ball Type: Trunnion Mounted, One-Piece Body
Sealing Design: Double Block and Bleed (DBB)
Fire-Safe Design: Designed in accordance with API 607 / API 6FA
Operating Temperature: -29℃ to 425℃ (depending on material and seat)
Body Materials: WCB；Optional: LCB, LCC, WC6, WC9, Stainless Steel, Duplex, Super Duplex, Nickel Alloys (on request)
Seat Materials: PEEK, PCTFE (KEL-F), Devlon V, Metal Seat
End Connection: Flanged (RF / RTJ)
Operation Types: Handle, Worm Gear, Electric, Pneumatic
Mounting: ISO 5211 direct mounting available
Applications: Oil & Gas, Chemical & Petrochemical, Power Generation, Offshore & Industrial Pipelines
Brand: SLVCN

Availability:

Quantity:



Inquire Add to Basket

Brand:
SLVCN

Product Description

Class 1500 Top Entry Ball Valve

Product Description

SLVCN Class 1500 Top Entry Trunnion Mounted Ball Valve is designed for reliable isolation in high-pressure, demanding environments, such as oil & gas, chemical processing, and power generation.

This valve features a trunnion-mounted ball and a Double Block and Bleed (DBB) sealing system for secure isolation and cavity pressure control, even under high differential pressures. The top-entry design allows for easy in-line inspection and maintenance, reducing downtime significantly in continuous operations.

Constructed with a durable one-piece cast WCB body, this valve provides high structural integrity while keeping costs manageable for large and high-pressure applications. Key safety features include fire-safe design, anti-static protection, and anti-blowout stem, ensuring safe operation in hazardous conditions. Materials and sealing systems are also available to meet NACE MR0175 standards for sour gas service.

Key Features

✓ Robust Trunnion-Mounted Support

The trunnion-mounted ball structure effectively absorbs axial loads under high differential pressure, reducing operating torque and ensuring stable, long-term sealing performance in critical service.

✓ Spring-Energized Seat Sealing
Spring-loaded seat design provides reliable sealing during low-pressure start-up and maintains tight shut-off under pressure fluctuations.

✓ SPE / DPE Seat Configuration Options

Single Piston Effect (SPE) and Double Piston Effect (DPE) seat designs are available to meet different pressure relief and safety requirements in Class 1500 applications.

✓ Integrated Double Block and Bleed (DBB)

The built-in DBB design with bleed port allows cavity pressure relief and on-line sealing integrity verification for high-pressure pipeline isolation.

✓ Fire-Safe Design for Hydrocarbon Service

Fire-safe construction ensures sealing integrity during fire exposure, meeting emergency isolation requirements in oil & gas and chemical services.

✓ Optional Emergency Sealant Injection

Seat and stem sealant injection ports are available upon request, enabling temporary sealing under abnormal or emergency operating conditions.

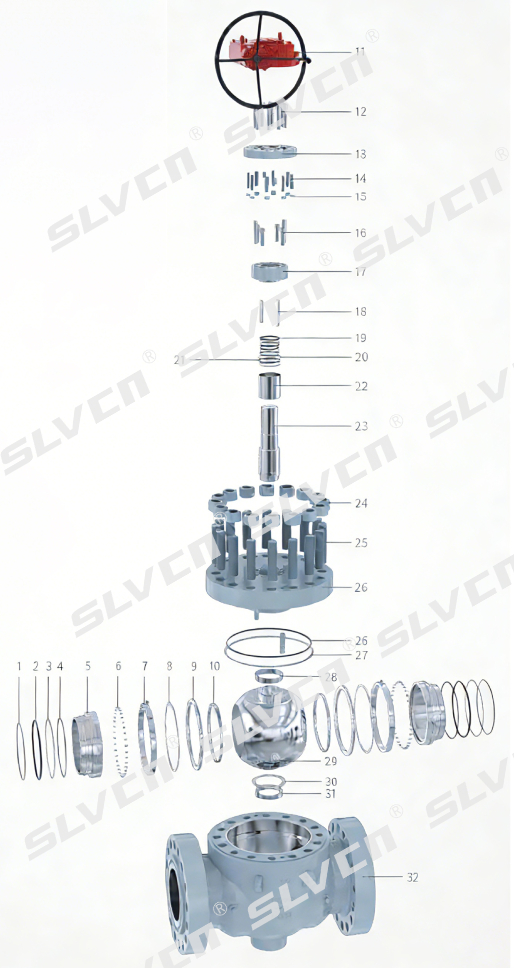

Parts List

Part List

1	"O"-Ring	9	Seat adjustment ring	17	Packing Box	25	Nut
2	"O"-Ring	10	Seat	18	Key	26	valve lid
3	Thrust Washer	11	Worm-Gear	19	Packing	27	"O"-Ring
4	Packing	12	Bolt	20	Gasket	28	Gasket
5	Seat Retainer	13	Connection Plate	21	"O"-Ring	29	Ball
6	Spring	14	Stud	22	Stem Bearing	30	Thrust Washer
7	Spring seat	15	Nut	23	Stem	31	Stem Bearing
8	Thrust Washer	16	Bolt	24	Stud	32	Body

Technical Specifications

Technical Specifications Dimensions: Class 1500 - Full Port

Size	Bore		Face to Face			D2 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	RF in/mm	RTJ in/mm	BWE in/mm	D2 in/mm	Model FT lb/kg
2"	1.94	1.94	14.5	14.63	14.5	8.5	121
50	49	49	368	371	368	216	55
3"	2.94	2.94	18.5	18.63	18.5	10.5	331
80	74	74	470	473	470	267	150
4"	3.94	3.94	21.5	21.63	21.5	12.2	606
100	100	100	546	549	546	311	275
6	5.69	5.69	27.75	28	27.75	15.6	1389
150	144	144	705	711	705	396	630
8"	7.56	7.56	32.75	33.13	32.75	19.1	2557
200	192	192	832	841	832	486	1160
10"	9.44	9.44	39	39.38	39	23	3263
250	239	239	991	1000	991	585	1480
12"	11.31	11.31	44.5	45.13	44.5	27.9	4475
300	287	287	1130	1146	1130	709	2030
14"	12.44	12.44	49.5	50.25	49.5	30.1	5842
350	315	315	1257	1276	1257	765	2650
16"	14.19	14.19	54.5	55.38	54.5	33.4	8642
400	360	360	1384	1407	1384	848	3920
18"	16	16	60.5	61.38	60.50*	38.6	11641
450	406	406	1537	1559	1537*	980	5280
20"	17.88	17.88	65.5	66.38	65.50*	40	14551
500	454	454	1664	1686	1664*	1015	6600
24"	21.5	21.5	77.60*	77.63	77.60*	50.9	24251
600	546	546	1972*	1972	1972*	1293	11000

Weight and dimensions for larger valve sizes up to 56" available on request. For more dimensions, please contact us.

Dimensions: Class 1500 - Reduced Port

Size	Bore		Face to Face			D2 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	RF in/mm	RTJ in/mm	BWE in/mm	D2 in/mm	Model FT lb/kg
2"X11/2"	1.94	1.5	14.5	14.63	14.5	8.5	110
50×40	49	38	368	371	368	216	50
3"×2"	2.94	1.94	18.5	18.63	18.5	10.5	212
80×50	74	49	470	473	470	267	96
4"×3"	3.94	2.94	21.5	21.63	21.5	12.2	441
100×80	100	74	546	549	546	311	200
6"X4"	5.69	3.94	27.75	28	27.75	15.6	827
150×100	144	100	705	711	705	396	375
8"×6"	7.56	5.69	32.75	33.13	32.75	19.1	1565
200×150	192	144	832	841	832	486	710
10"X8"	9.44	7.56	39	39.38	39	23.1	2866
250×200	239	192	991	1000	991	586	1300
12"×10"	11.31	9.44	44.5	45.13	44.5	26.6	3527
300×250	287	239	1130	1146	1130	676	1600
14"X10"	12.44	9.44	49.5	50.25	49.5	29.6	4740
350×250	315	239	1257	1276	1257	751	2150
14"X12"	12.44	11.31	49.5	50.25	49.5	29.6	6063
350×300	315	287	1257	1276	1257	751	2750
16"×12"	14.19	11.31	54.5	55.38	54.5	32.5	6945
400×300	360	287	1384	1407	1384	826	3150
20"X16"	17.88	14.19	65.5	66.38	65.50*	38.8	11023
500×400	454	360	1664	1686	1664*	986	5000
24"X20"	21.5	17.88	77.60*	77.63	77.60*	46.1	16314
600×500	546	454	1972*	1972	1972*	1170	7400
