Fully Welded Gas Ball Valve with Gear Operator for Underground Service

Size: 2" to 56" (DN50–DN1400)
Pressure Rating: Class 900 (Optional Class 150/300/600/1500)
Body Material: Carbon Steel, Low Temperature Steel, Stainless Steel, Duplex/Alloy Steel (customizable)
Seat Material: PEEK, PCTFE, Devlon V-API, Hard-seated options
Operating Temperature: -29℃ to 180℃ (Material Dependent)
Ball Type: Trunnion-mounted, fully welded one-piece body
Sealing: Double Block-and-Bleed (DBB) with optional emergency sealant injection
End Connection: Butt Weld / Socket Weld (pipe extension optional)
Operation: Gear-operated (manual), optional electric or pneumatic
Safety: Fire-Safe, Anti-Static, Anti-Blowout Stem design
Mounting: ISO 5211 direct mounting
Brand: SLVCN

Availability:

Quantity:



Inquire Add to Basket

Brand:
SLVCN

Product Description

Product Description

The SLVCN Direct Burial Fully Welded Gas Ball Valve is engineered for high-performance, underground gas transmission systems. With a fully welded one-piece body, it ensures zero external leakage, making it ideal for subsea, underground, and high-pressure environments.

The Double Block-and-Bleed (DBB) design provides secure isolation and safe cavity pressure relief, preventing leaks and ensuring safe operation. The trunnion-mounted ball offers stable sealing even under high pressure and large diameters. The gear-operated mechanism ensures smooth, low-torque manual operation, making it easy to control in critical applications.

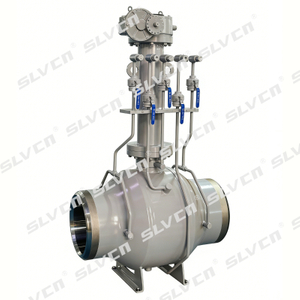

Optimized for above-ground installations with a short stem, it also offers an optional extended stem for direct burial. Available in customizable materials like Carbon Steel, Stainless Steel, Alloy Steel, PEEK, and PCTFE, it meets the needs of gas transmission, oil & gas, and offshore pipeline applications.

This valve is designed to be reliable, safe, and low-maintenance, making it the perfect choice for demanding pipeline environments.

Key Features

✓ Double Block-and-Bleed (DBB) Configuration:
Secure pipeline isolation with safe cavity pressure relief for gas systems.

✓ Trunnion-Mounted Ball Design:
Ensures stable sealing under high-pressure, large-diameter conditions.

✓ Gear-Operated:
Low-torque manual operation, ideal for full-pressure control.

✓ Safety Features:
Includes fire-safe seats, anti-static protection, and anti-blowout stem.

✓ Versatile Material Options:
Customizable materials to suit various gas media and operational needs.

Technical Specifications

double block and bleed ball valve Dimensions: Class 900 - Full Port

Size	Bore		Face to Face			D in/mm	D1 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	RF in/mm	RT J in/mm	BWE in/mm	D in/mm	D1 in/mm	Model FF lb/kg	Model FW lb/kg
2"	1.94	1.94	14.5	14.63	14.5	8.5	8.5	137	137
50	49	49	368	371	368	216	216	62	62
3"	2.94	2.94	15	15.13	15	9.5	9.5	205	205
80	74	74	381	384	381	241	241	93	93
4"	3.94	3.94	18	18.13	18	11.5	11.5	337	337
100	100	100	457	460	457	291	291	153	153
6"	5.94	5.94	24	24.13	24	15	15	750	750
150	150	150	610	613	610	381	381	340	340
8"	7.94	7.94	29	29.13	29	18.9	18.5	1482	1433
200	201	201	737	740	737	480	470	672	650
10"	9.94	9.94	33	33.13	33	21.5	21.5	2061	2017
250	252	252	838	841	838	546	546	935	915
12"	11.94	11.94	38	38.13	38	25	24	3098	2976
300	303	303	965	968	965	635	610	1405	1350
14"	12.69	12.69	40.5	40.88	40.5	26.5	25.2	3825	3638
350	322	322	1029	1038	1029	673	640	1735	1650
16"	14.69	14.69	44.5	44.88	44.5	29.8	28.5	4985	4630
400	373	373	1130	1140	1130	757	725	2261	2100
18"	16.69	16.69	48	48.5	48	33.9	31.5	6834	5842
450	423	423	1219	1232	1219	862	800	3100	2650
20"	18.56	18.56	52	52.5	52	38	36.2	9462	8708
500	471	471	1321	1334	1321	965	920	4292	3950
24"	22.44	22.44	61	61.75	61	45.9	43.3	16579	15432
600	570	570	1549	1568	1549	1165	1100	7520	7000

Weight and dimensions for larger valve sizes up to 56" available on request

Dimensions: Class 900 - Reduced Port

Size	Bore		Face to Face			D in/mm	D1 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	RF in/mm	RTJ in/mm	BWE in/mm	D in/mm	D1 in/mm	Model GG lb/kg	Model GW lb/kg
2"×11/2"	1.93	1.5	14.5	14.63	14.5	8.5	8.5	108	108
50×40	49	38	368	371	368	216	216	49	49
3"X2"	2.94	1.94	15	15.13	15	9.5	9.5	150	150
80×50	74	49	381	384	381	241	241	68	68
4"X3"	3.94	2.94	18	18.13	18	11.5	11.5	254	254
100×80	100	74	457	460	457	291	291	115	115
6"×4"	5.94	3.94	24	24.13	24	15	15	481	481
150×100	150	100	610	613	610	381	381	218	218
8"×6"	7.94	5.94	29	29.13	29	18.5	18.5	948	948
200×150	201	150	737	740	737	471	471	430	430
10"×8"	9.94	7.94	33	33.13	33	21.5	21.5	1700	1654
250×200	252	201	838	841	838	546	546	771	750
12"×10"	11.94	9.94	38	38.13	38	24.1	24.1	2355	2293
300×250	303	252	965	968	965	611	611	1068	1040
14"×10"	12.69	9.94	40.5	40.88	40.5	25.2	25.2	2573	2513
350×250	322	252	1029	1038	1029	641	641	1167	1140
14"X12"	12.69	11.94	40.5	40.88	40.5	25.2	25.2	3329	3219
350×300	322	303	1029	1038	1029	641	641	1510	1460
16"×12"	14.69	11.94	44.5	44.88	44.5	27.8	27.8	3611	3472
400×300	373	303	1130	1140	1130	706	706	1638	1575
20"X16"	18.56	14.69	52	52.5	52	33.7	33.7	6614	6283
500×400	471	373	1321	1334	1321	855	855	3000	2850
24"×20"	22.44	18.56	61	61.75	61	41	41	11422	10472
600×500	570	471	1549	1568	1549	1041	1041	5181	4750
