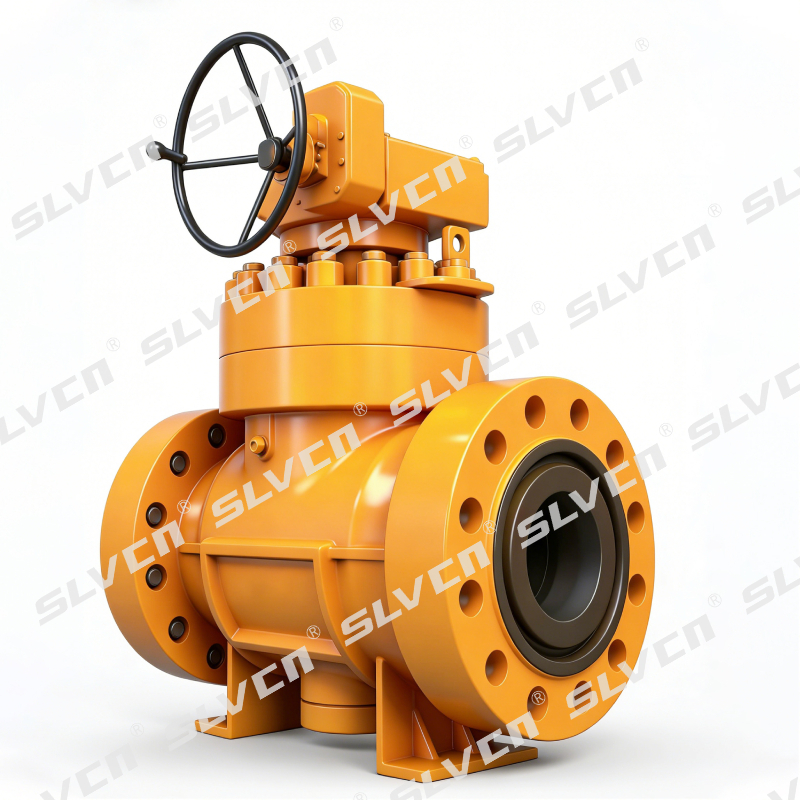

Dual-drive Operation High-Temp & High-Pressure Metal Seated Top Entry Ball Valve

Size Range: 2"–64" (DN50–DN1600)
Pressure Class: ASME Class 600
Other Pressure Classes: ASME Class 150 / 300 / 900 / 1500 / 2500 (on request, subject to design confirmation)
Typical Service: High-temperature and high-pressure pipeline isolation
Temperature Range: Metal seated: -29°C to 425°C (material dependent)
Ball Design: Trunnion mounted
Body Construction: Forged steel body with bolted top cover (Top Entry)
Sealing Design: Double Block and Bleed (DBB), bi-directional
Seat Configuration: Metal seat (standard); soft seat optional
Seat Materials: Metal, PEEK, PCTFE (KEL-F), Devlon V
Standard Body Material: ASTM A216 WCB
Optional Materials: LCB, LCC, WC6, WC9, Stainless Steel, Duplex, Super Duplex, Nickel alloys
Operation: Worm gear with electric actuator (dual-drive)
Actuator Mounting: ISO 5211 direct mounting
End Connection: Flanged RF / RTJ
Design Standards: Accordance with API 6D, BS 5351, ASME B16.34
Fire-Safe Design: Designed in accordance with API 607 / API 6FA
Brand: SLVCN

Availability:

Quantity:



Inquire Add to Basket

Brand:
SLVCN

Product Description

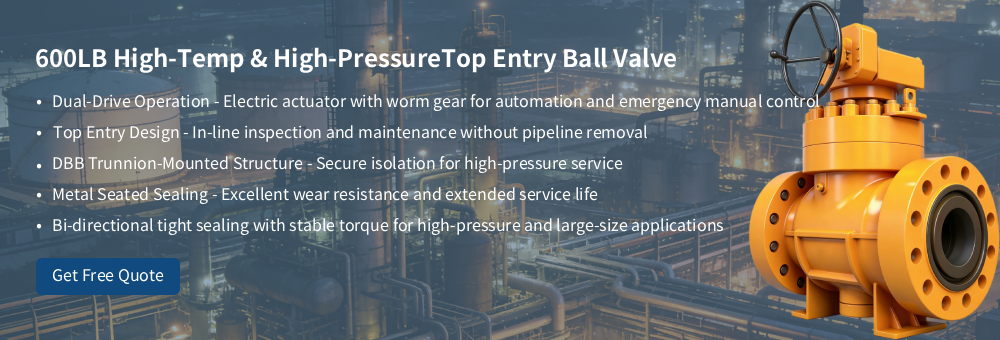

Top Entry Ball Valve Banner

Product Description

SLVCN's 600LB Trunnion-Mounted Ball Valve is designed for high-pressure and high-temperature industrial applications. With a dual-drive system (electric actuator + manual worm gear), it ensures secure operation for automation and emergency control.

The top-entry design allows in-line maintenance without pipeline removal, minimizing downtime. The forged body and trunnion-mounted ball provide robust support for large-size, high-pressure systems.

Double Block and Bleed (DBB) ensures reliable isolation and pressure control, while the metal-seated design offers excellent wear resistance and long lifespan.

Fire-safe features with anti-static devices and anti-blowout stem guarantee safe operation in hazardous environments. Ideal for oil & gas, chemical processing, and offshore applications, where performance and safety are paramount.

Key Features

✓ Dual-Drive Operation for Optimal Control

Combines electric actuator automation and manual worm gear control, ensuring reliable operation in all conditions, including emergencies.

✓ Top Entry Design for Quick In-Line Maintenance
Allows for easy in-line inspection and maintenance without valve removal, reducing downtime and cutting maintenance costs.

✓ Trunnion-Mounted Forged Ball for High Stability

The forged trunnion-mounted ball ensures even pressure distribution, perfect for high-pressure and large-diameter pipeline applications.

✓ Leak-Free Bi-Directional Sealing

Bi-directional sealing with low-torque operation ensures reliable, leak-free performance even under extreme pressure and in critical environments.

✓ Fire-Safe Design for Hydrocarbon Service

Fire-safe construction ensures sealing integrity during fire exposure, meeting emergency isolation requirements for oil & gas and chemical services.

✓ Emergency Shutoff for Enhanced Safety

An integrated emergency shutoff feature guarantees safe, leak-free operation during critical situations, providing quick and secure response.

Technical Specifications

Technical Specifications Dimensions: Class 600 - Full Port

Size	Bore		Model / Face to Face			D2 in/mm	Weight
NPS/DN	B1in/mm	B2 in/mm	FT RF in/mm	FT RTJ in/mm	FT BWE in/mm	D2 in/mm	Model FT lb/kg
2"	1.94	1.94	11.5	11.63	11.5	7.5	132
50	49	49	292	295	292	190	60
3"	2.94	2.94	14	14.13	14	9.4	287
80	74	74	356	359	356	240	130
4"	3.94	3.94	17	17.13	17	11.4	529
100	100	100	432	435	432	290	240
6"	5.94	5.94	22	22.13	22	14.6	628
150	150	150	559	562	559	370	285
8"	7.94	7.94	26	26.13	26	20.5	1235
200	201	201	660	664	660	521	560
10"	9.94	9.94	31	31.13	31	20.1	1852
250	252	252	787	791	787	510	840
12"	11.94	11.94	33	33.13	33	22.6	2028
300	303	303	838	841	838	575	920
14"	13.19	13.19	35	35.13	35	26.4	2602
350	334	334	889	892	889	670	1180
16"	15.19	15.19	39	39.13	39	28	3748
400	385	385	991	994	991	712	1700
18"	17.19	17.19	43	43.13	43	29.8	5291
450	436	436	1092	1095	1092	757	2400
20"	19.19	19.19	47	47.25	47	36.4	6724
500	487	487	1194	1200	1194	925	3050
22"	21.19	21.19	51	51.38	51	37.3	9524
550	538	538	1295	1305	1295	947	4320
24"	23.19	23.19	55	55.38	55	42.5	11751
600	589	589	1397	1407	1397	1080	5330

Weight and dimensions for larger valve sizes up to 64" available on request. For more dimensions, please contact us.

Dimensions: Class 600 - Reduced Port

Size	Bore		Model / Face to Face			D2 in/mm	Weight
NPS/DN	B1	B2 in/mm	GT RF in/mm	GT RTJ in/mm	GT BWE in/mm	D2 in/mm	Model GT lb/kg
2"X 11/2"	1.94	1.5	11.5	11.63	11.5	6.5	77
50X40	49	38	292	295	292	166	35
3"X2"	2.94	1.94	14	14.13	14	8.3	154
80X50	74	49	356	359	356	211	70
4"X3"	3.94	2.94	17	17.13	17	10.9	309
100X80	100	74	432	435	432	276	140
6"X4"	5.94	3.94	22	22.13	22	14	584
150X100	150	100	559	562	559	356	265
8"X6"	7.94	5.94	26	26.13	26	16.6	750
200X150	201	150	660	664	660	421	340
10"x8"	9.94	7.94	31	31.13	31	20.1	1323
250X200	252	201	787	791	787	511	600
12"X10"	11.94	9.94	33	33.13	33	22.1	1984
300X250	303	252	838	841	838	561	900
14"X10"	13.19	11.94	35	35.13	35	23.9	2535
350X250	334	252	889	892	889	606	1150
14"X12"	13.19	11.94	35	35.13	35	23.9	2756
350X300	334	303	889	892	889	606	1250
16"X12"	15.19	11.94	39	39.13	39	27	3197
400X300	385	303	991	994	991	686	1450
20"X16"	19.19	15.19	47	47.25	47	32.1	4872
500X400	487	385	1194	1200	1194	816	2210
24"X20"	23.19	19.19	55	55.38	55	37	7628
600X500	589	487	1397	1407	1397	941	3460
28"X24"	26.94	23.19	61	61.5	61	AOR	12743
700X600	684	589	1549	1562	1549	1080	5780
30"X24"	28.94	23.19	65	65.5	65	AOR	13779
750X600	735	589	1651	1664	1651	1130	6250
