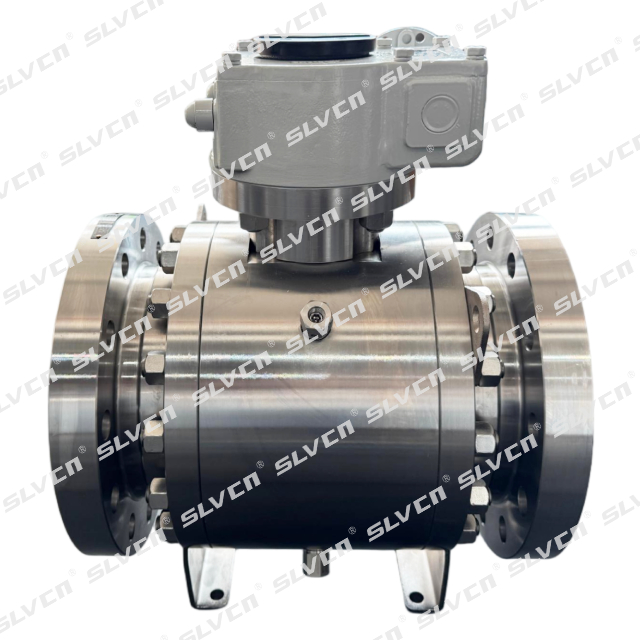

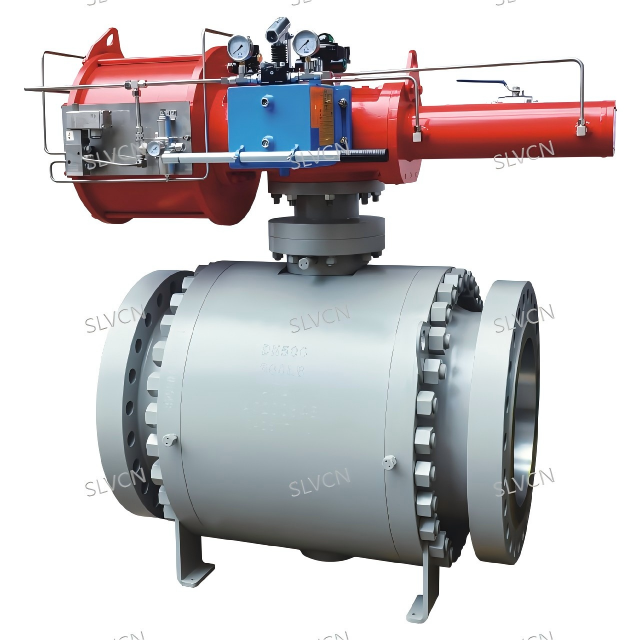

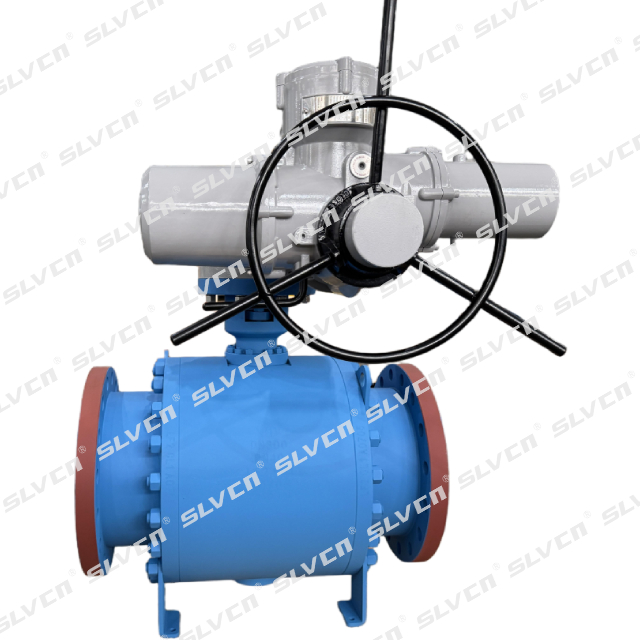

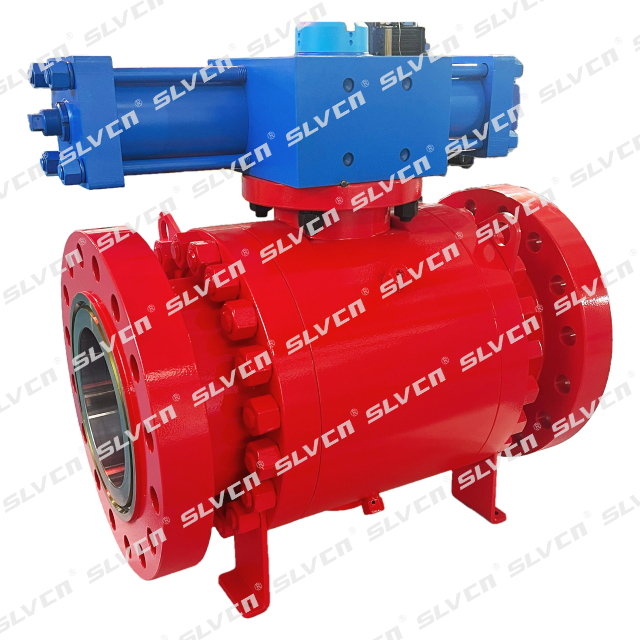

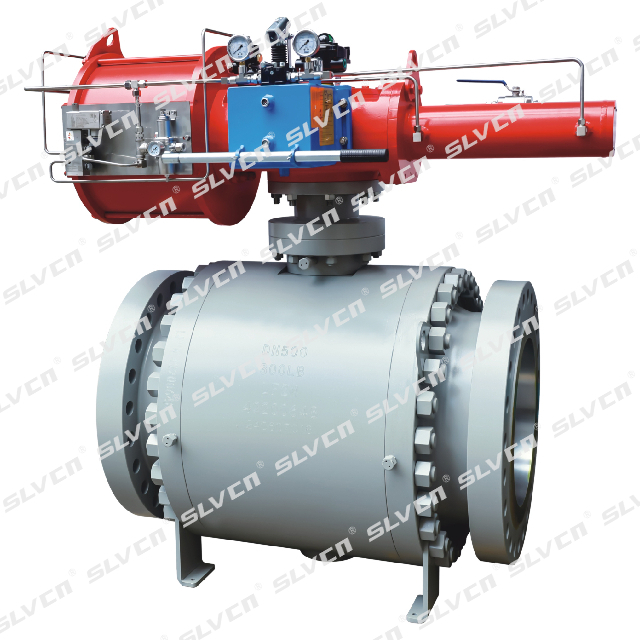

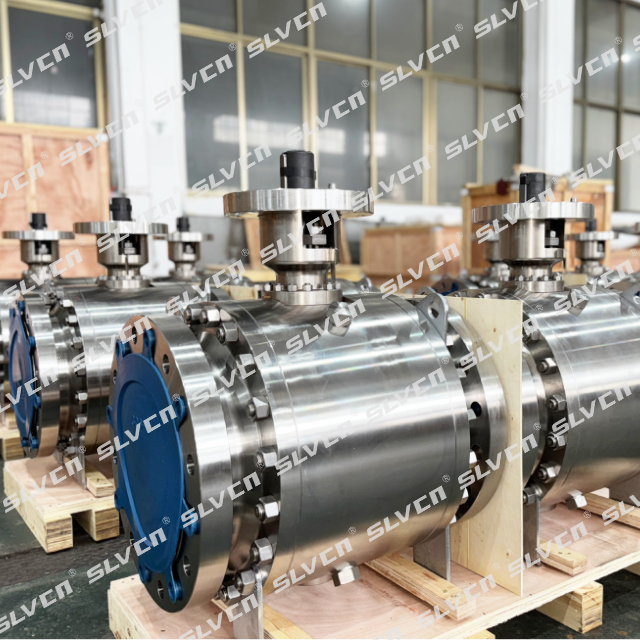

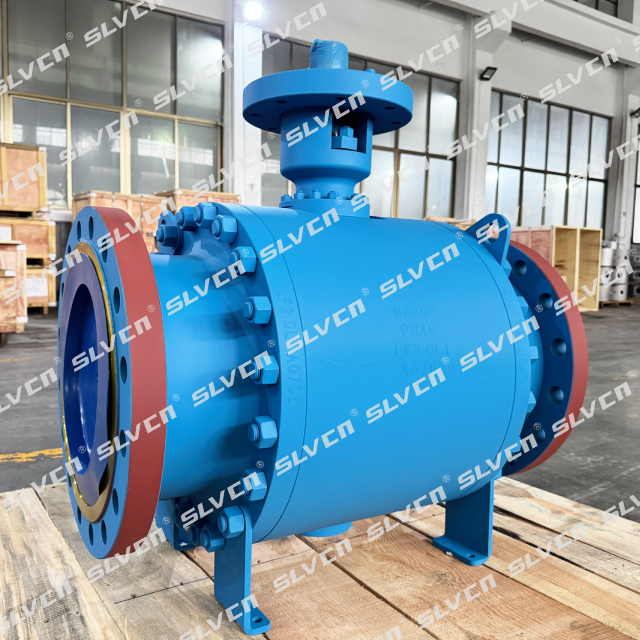

Class 300 Trunnion-mounted Forged Steel Ball Valve

Size: 2" to 64" (DN50–DN1600)

Pressure: Class 300 (Optional Class150/500/600/900/1500/2500)
Operating Temperature：-46°C ~ +200°C (Material Dependent)

Assembly Method: Side Entry

Ball Type: Trunnion-mounted, 2-3 Piece Body

End Connection: Flanged RF/RTJ (BW Optional)
Operation Types: Handle, Worm Gear, Electric, Pneumatic

Body Materials: A105, A350 LF2, F304, F316, F316L, F51, F53, ect.
Seat Materials: RPTFE, PTFE, Nylon / Devlon, Optional PEEK

Standards: API 6D, ASME B16.34, API 607, API 598
Application Field: Oil & Gas, Chemical & Petrochemical, Power Generation, Water Treatment & Supply, General Industrial Pipeline Systems, ect.
Brand: SLVCN

Availability:

Quantity:



Inquire Add to Basket

Brand:
SLVCN

Product Description

Product Description

The Class 300 Forged Steel Trunnion-Mounted Ball Valve from SLVCN delivers stable sealing and reliable performance for industrial pipeline applications. The trunnion-mounted ball ensures consistent operating torque, while the spring-loaded seat design provides automatic sealing compensation under changing pressure conditions. With Double Block and Bleed (DBB) capability and optional Single or Double Piston Effect seats, the valve offers enhanced sealing reliability and cavity pressure control. Safety is ensured with Anti-Blowout Stem, Anti-Static Device, and Fire-Safe construction compliant with API 607 / ISO 10497. Supporting manual, worm gear, electric, or pneumatic actuation with ISO 5211 direct mounting, the valve is easy to automate and maintain. Manufactured and tested to API 6D, ASME B16.34, and API 598, it meets Class 300 (PN50) pressure rating requirements for industries such as Oil & Gas, Chemical, Power, and Water Treatment.

Key Features

✓ Enhanced Safety & Leak Prevention

Double Block and Bleed (DBB), Anti-Blowout Stem, and Fire-Safe Design (API 607 / ISO 10497) provide maximum safety, ensuring leak-free performance in critical process lines. The valve's anti-static device further enhances operational safety in high-risk environments.

✓ Reliable Sealing Performance

The spring-loaded seat design and Double Piston Effect seat options offer superior sealing performance, providing leak-free operation even under varying pressure conditions, ensuring reliability in dynamic industrial processes.

✓ Durable & Corrosion-Resistant

Crafted from high-quality forged steel and corrosion-resistant materials, this valve is built to withstand harsh conditions, including exposure to chemicals, water treatment processes, and mild corrosive environments. It offers long-term durability and protection from wear and tear.

✓ Flexible & Easy Integration

The valve supports manual, worm gear, electric, and pneumatic actuation. With ISO 5211 direct mounting options, it is designed for easy automation integration, reducing downtime and simplifying maintenance for long-term operational efficiency.

✓ Versatile Bore Options

Available in Full Bore and Reduced Bore configurations to match the system's flow and pressure requirements. This versatility allows you to tailor the valve to your specific application needs, ensuring optimal performance.

✓ Customizable Options

The valve is available in a range of sizes and materials, including A694F52, A694F60, A694F65, A182F6A, A182F316, A182F347, and Inconel 625, allowing for customization based on specific industrial needs and environmental conditions.

✓ Proven Reliability in Industrial Applications

Ideal for a variety of industries, including Oil & Gas, Chemical & Petrochemical, Power Generation, Water Treatment, and other high-pressure and general industrial applications. It is built to meet the rigorous demands of these industries, providing a reliable solution for critical pipeline systems.

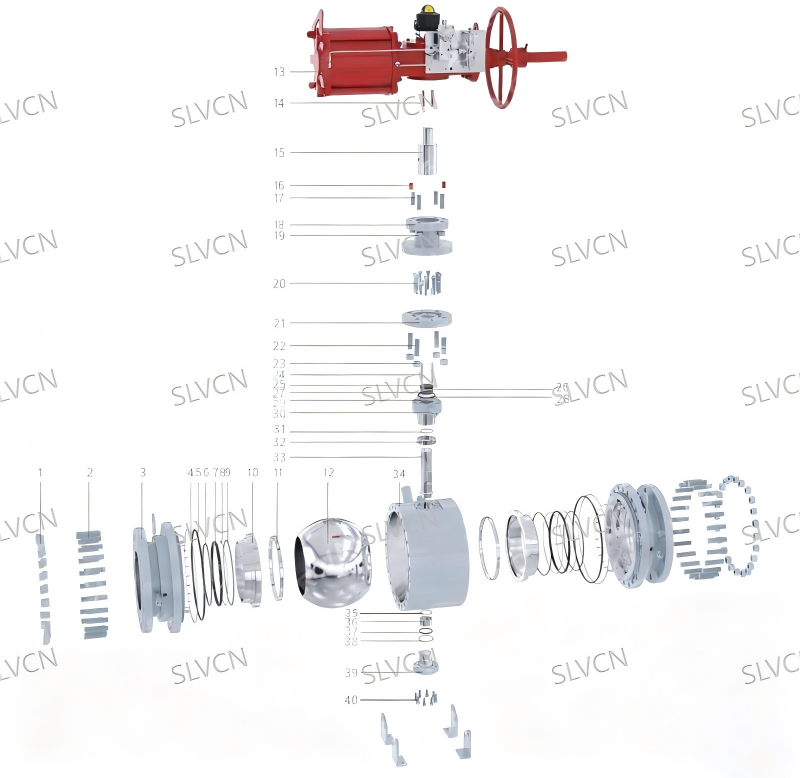

Parts List

Class300 Forged Steel Ball Valve

1	Nut	9	Packing	17	Stud	25	Packing	33	Stem
2	Stud	10	Seat Retainer	18	Yoke	26	"O"-Ring	34	Body
3	Right Body	11	Seat	19	Nut	27	Thrust Washer	35	Thrust Washer
4	Gasket	12	Ball	20	Bolt	28	Packing Box	36	Stem Bearing
5	"O"-Ring	13	Pneumatic actuator	21	Connection Plate	29	Gasket	37	"O"-Ring
6	"O"-Ring	14	Key	22	Stud	30	SealantInjection Valve	38	Gasket
7	"O"-Ring	15	Coupling sleeve	23	Nut	31	Thrust Washer	39	Lower Cover
8	Thrust Washer	16	Pin	24	Key	32	Stem Bearing	40	Bolt

Technical Specifications

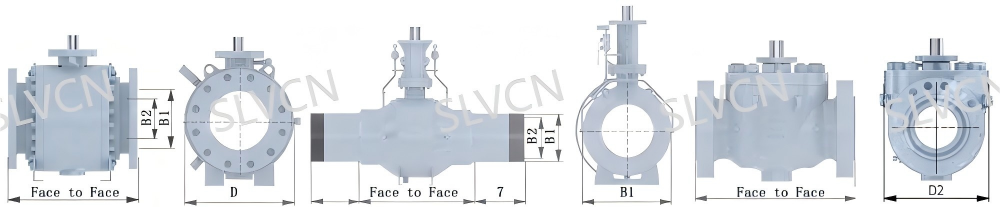

Class300 Trunnion-mounted Ball Valve Dimensions: Class 300 - Full Port

Size	Bore		Side Entry								Top Entry
Size	Bore		Model / Face to Face				D in/mm	D1 in/mm	Weight		Model / Face to Face			D2 in/mm	Weight
NPS/DN	B1 in/mm	B2 in/mm	FF.FW RF in/mm	FF,FW RTJ in/mm	FF BWE in/mm	FW BWE in/mm	D in/mm	D1 in/mm	Model FF lb/kg	Model FW lb/kg	FT RF in/mm	FT RTJ in/mm	FT BWE in/mm	D2 in/mm	Model FT lb/kg
2"	1.94	1.94	8.5	9.13	8.5	11	6.5	6.5	60	60	11,50	11.63	11.5	7.5	121
50	49	49	216	232	216	279	166	166	27	27	292	295	292	190	55
3"	2.94	2.94	11.13	11.75	11.13	12.5	8.5	8.5	132	132	14	14.13	14	9.4	276
80	74	74	283	298	283	318	216	216	60	60	356	359	356	240	125
4"	3.94	3.94	12	12.63	12	14	10.1	10.1	179	179	17	17.13	17	11.4	507
100	100	100	305	321	305	356	256	256	81	81	432	435	432	290	230
6"	5.94	5.94	15.88	16.5	18	18	12.9	12.9	408	397	22	22.13	22	14.6	606
150	150	150	403	419	457	457	328	328	185	180	559	562	559	370	275
8"	7.94	7.94	19.75	20.38	20.5	21.5	16.3	15.9	688	659	26	26.13	26	16.3	1124
200	201	201	502	518	521	546	413	404	312	299	660	664	660	415	510
10"	9.94	9.94	22.38	23	22	23.5	19.1	18.5	1038	977	31	31.13	31	19.9	1279
250	252	252	568	584	559	597	485	470	471	443	787	791	787	505	580
12"	11.94	11.94	25.5	26.13	25	26.5	23.6	22.8	1883	1713	33	33.13	33	22.6	1609
300	303	303	648	664	635	673	600	580	854	777	838	841	838	575	730
14"	13.19	13.19	30	30.63	30	28.5	24	23.4	2130	1962	35	35.13	35	26.4	2072
350	334	334	762	778	762	724	610	595	966	890	889	892	889	670	940
16"	15.19	15.19	33	33.63	33	30.5	27.6	26.8	3031	2785	39	39.13	39	28	3087
400	385	385	838	854	838	775	700	680	1375	1263	991	994	991	712	1400
18"	17.19	17.19	36	36.63	36	33.5	31.1	30.7	4145	4012	43	43.13	43	29.8	4079
450	436	436	914	930	914	851	790	780	1880	1820	1092	1095	1092	757	1850
20"	19.19	19.19	39	39.75	39	35.5	34.1	33.6	5236	4996	47	47.25	47	36.4	5181
500	487	487	991	1010	991	902	865	854	2375	2266	1194	1200	1194	925	2350
22"	21.19	21.19	43	43.88	43	38.5	37.1	36.6	6371	6129	51	51.38	51	37.3	7341
550	538	538	1092	1114	1092	978	943	930	2890	2780	1295	1305	1295	947	3330
24"	23.19	23.19	45	45.88	45	42	40.6	40.2	8380	7963	55	55.38	55	42.5	8598
600	589	589	1143	1165	1143	1067	1031	1020	3801	3612	1397	1407	1397	1080	3900
26'	24.94	24.94	49	50	49	44.5	43.4	42.9	10847	10450	57	57.5	57	43.7	10141
650	633	633	1245	1270	1245	1130	1103	1090	4920	4740	1448	1461	1448	1110	4600
28"	26.94	26.94	53	54	53	47	46.5	45.7	13451	13184	61	61.5	61	45.1	12214
700	684	684	1346	1372	1346	1194	1180	1160	6101	5980	1549	1562	1549	1146	5540
30"	28.94	28.94	55	56	55	49	50	49.2	15362	14782	65	65.5	65	54.3	14771
750	735	735	1397	1422	1397	1245	1270	1250	6968	6705	1651	1664	1651	1380	6700
32"	30.69	30.69	60	61.13	60	N/A	52.7	52	18409	17902	70	70.63	70	55.9	18519
800	779	779	1524	1553	1524	N/A	1339	1320	8350	8120	1778	1794	1778	1420	8400
34"	32.69	32.69	64	65.13	64	54.5	56.3	55.3	21870	21187	76	76.63	76	59.1	20503
850	830	830	1626	1654	1626	1384	1430	1405	9920	9610	1930	1946	1930	1500	9300
36"	34.44	34.44	68	69.13	68	56.5	59.4	58.9	25292	24516	82	82.63	82	61.8	24141
900	874	874	1727	1756	1727	1435	1510	1495	11472	11120	2083	2099	2083	1570	10950
40"	38.44	38.44	77.00*	N/A	77.00*	65	63.7	62.9	28704	28109	86.60*	N/A	86.60*	66.9	33577
1000	976	976	1956*	N/A	1956"	1651	1618	1598	13020	12750	2200*	N/A	2200*	1700	15230
42"	40.19	40.19	70.00*	N/A	70.00*	66.5	68	66.9	31107	30755	94.10*	N/A	94.10"	71.7	41712
1050	1020	1020	1780*	N/A	1780"	1689	1727	1700	14110	13950	2390"	N/A	2390*	1820	18920
48"	45.94	45.94	81.50*	N/A	81.50*	76	77.2	76.4	44115	42329	106.30*	N/A	106.30*	86.6	58423
1200	1166	1166	2070*	N/A	2070*	1930	1960	1940	20010	19200	2700"	N/A	2700*	2200	26500

Weight and dimensions for larger valve sizes up to 64" available on request

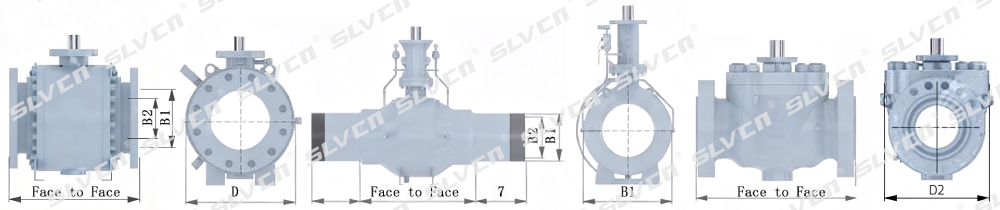

Dimensions: Class 300 - Reduced Port

Size	Bore		Side Entry								Top Entry
Size	Bore		Model / Face to Face				D in/mm	D1 in/mm	Weight		Model / Face to Face			D2 in/mm	Weight
NPS/DN	B1	B2 in/mm\|in/mm	GG, GW RF in/mm	GG, GW RTJ in/mm	GG BWE in/mm	GW BWE in/mm	D in/mm	D1 in/mm	Model GG lb/kg	Model GW lb/kg	GT RF in/mm	GT RTJ in/mm	GT BWE in/mm	D2 in/mm	Model GT lb/kg
2"×11/2"	1.94	1.5	8.5	9.13	8.5	11	6.5	6.5	57	57	11.5	11.63	11.5	6.5	66
50×40	49	38	216	232	216	279	166	166	26	26	292	295	292	166	30
3"×2"	2.94	1.94	11.13	11.75	11.13	12.5	8.3	8.3	88	88	14	14.13	14	8.3	143
80×50	74	49	283	298	283	318	211	211	40	40	356	359	356	210	65
4"×3"	3.94	2.94	12	12.63	12	14	10.1	10.1	154	154	17	17.13	17	10	298
100×80	100	74	305	321	305	356	256	256	70	70	432	435	432	255	135
6" ×4"	5.94	3.94	15.9	16.5	18	18	12.6	12.6	251	251	22	22.13	22	12.6	551
150×100	150	100	403	419	457	457	321	321	114	114	559	562	559	320	250
8"×6"	7.94	5.94	19.8	20.38	20.5	21.5	15	15	481	468	26	26.13	26	15	661
200×150	201	150	502	518	521	546	381	381	218	212	660	664	660	381	300
10"X8"	9.94	7.94	22.4	23	22	23.5	17.6	17.6	769	737	31	31,13	31	17.5	1191
250×200	252	201	568	584	559	597	446	446	349	334	787	791	787	445	540
12"×10"	11.94	9.94	25.5	26.13	25	26.5	20.5	20.5	1164	1095	33	33.13	33	20.5	1367
300×250	303	252	648	664	635	673	521	521	528	496	838	841	838	520	620
14"×10"	13.19	11.94	30	30.63	30	28.5	23.1	23.1	1340	1261	35	35.13	35	23	1764
350×250	334	252	762	778	762	724	586	586	608	572	889	892	889	585	800
14"×12"	13.19	11.94	30	30.63	30	28.5	23.6	23.1	2134	1942	35	35.13	35	23	1984
350×300	334	303	762	778	762	724	600	586	968	881	889	892	889	585	900
16"×12"	15.19	11.94	33	33.63	33	30.5	25.6	25.6	2236	2034	39	39.13	39	25.6	2161
400×300	385	303	838	854	838	775	651	651	1014	922	991	994	991	650	980
20"X16"	19.19	15.19	39	39.75	39	35.5	30.6	30.6	3446	3166	47	47.25	47	30.5	4057
500×400	487	385	991	1010	991	902	776	776	1563	1436	1194	1200	1194	775	1840
24"×20"	23.19	19.19	45	45.88	45	42	36.1	36.1	5792	5525	55	55.38	55	36.4	6371
600×500	589	487	1143	1165	1143	1067	916	916	2627	2506	1397	1407	1397	925	2890
28"×24"	26.94	23.19	53	54	53	47	40.7	40.7	9083	8631	61	61.5	61	AOR	9877
700×600	684	589	1346	1372	1346	1194	1035	1035	4120	3915	1549	1562	1549	1080	4480
30"X24"	28.94	23.19	55	56	55	49	43	43	9650	9169	65	65.5	65	42.9	10582
750×600	735	589	1397	1422	1397	1245	1091	1091	4377	4159	1651	1664	1651	1090	4800
34"×30"	32.69	28.94	64	65.13	64	54.5	50	50	16623	16167	76	76.63	76	54.3	17417
850×750	830	735	1626	1654	1626	1384	1270	1270	7540	7333	1930	1946	1930	1380	7900
36"×30"	34.44	28.94	68	69.13	68	56.5	50	50	17439	16892	82	82.63	82	54.3	18475
900×750	874	735	1727	1756	1727	1435	1270	1270	7910	7662	2083	2099	2083	1380	8380
